Happymodel SuperX ELRS AIO Mobula6 Flight Controller 2024 Upgrade
Unleash your inner radiance with this dreamy find a vintage-inspired treasure that whispers stories of sun-drenched afternoons and effortless style. It's more than just an item it's a vibe a feeling a little bit of magic you can wear.
more
Happymodel SuperX ELRS AIO 5-IN-1 Flight controller for Mobula6 2024
Specification:
Flight controller

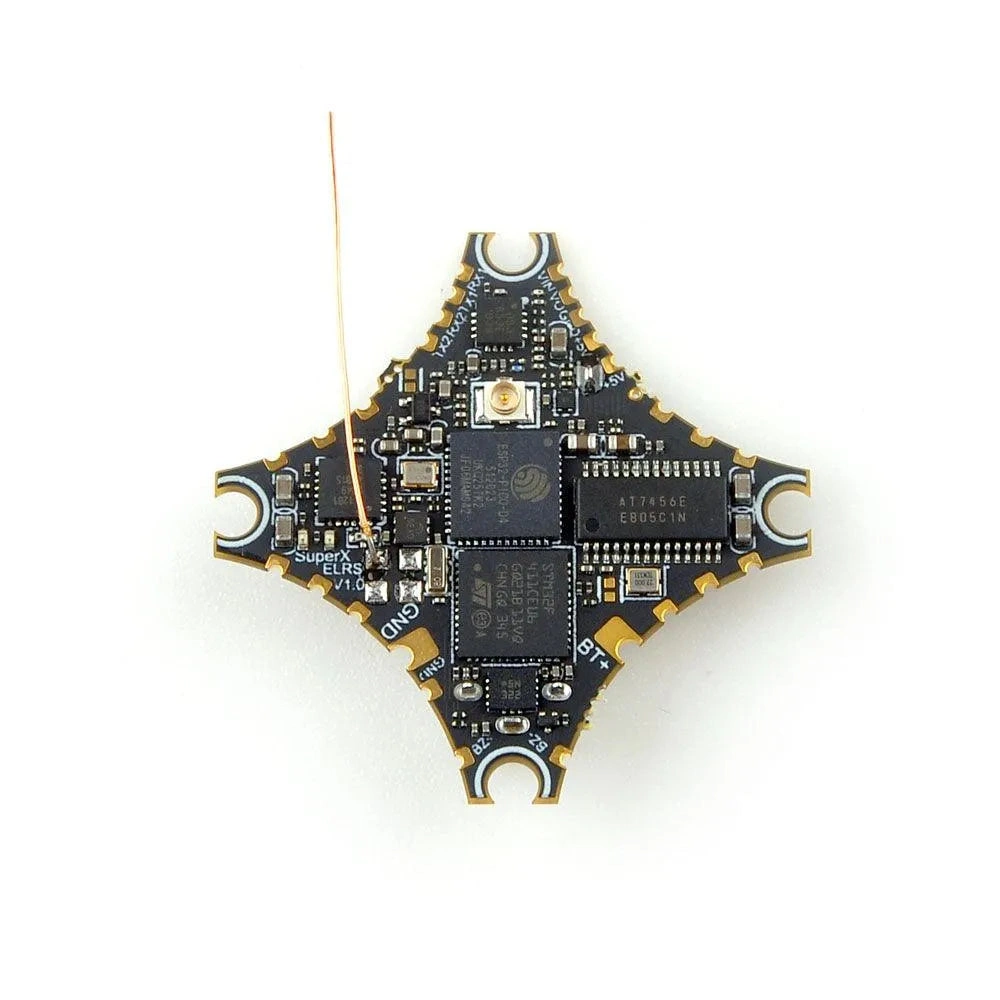

SuperX ELRS AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor:BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 1175
Onboard 4in1 ESC
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200
Onboard Serial ExpressLRS receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: ExpressLRS firmware target:
HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
Available from Expresslrs version 3.4.0 RC2
Onboard 5.8g VTX
Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

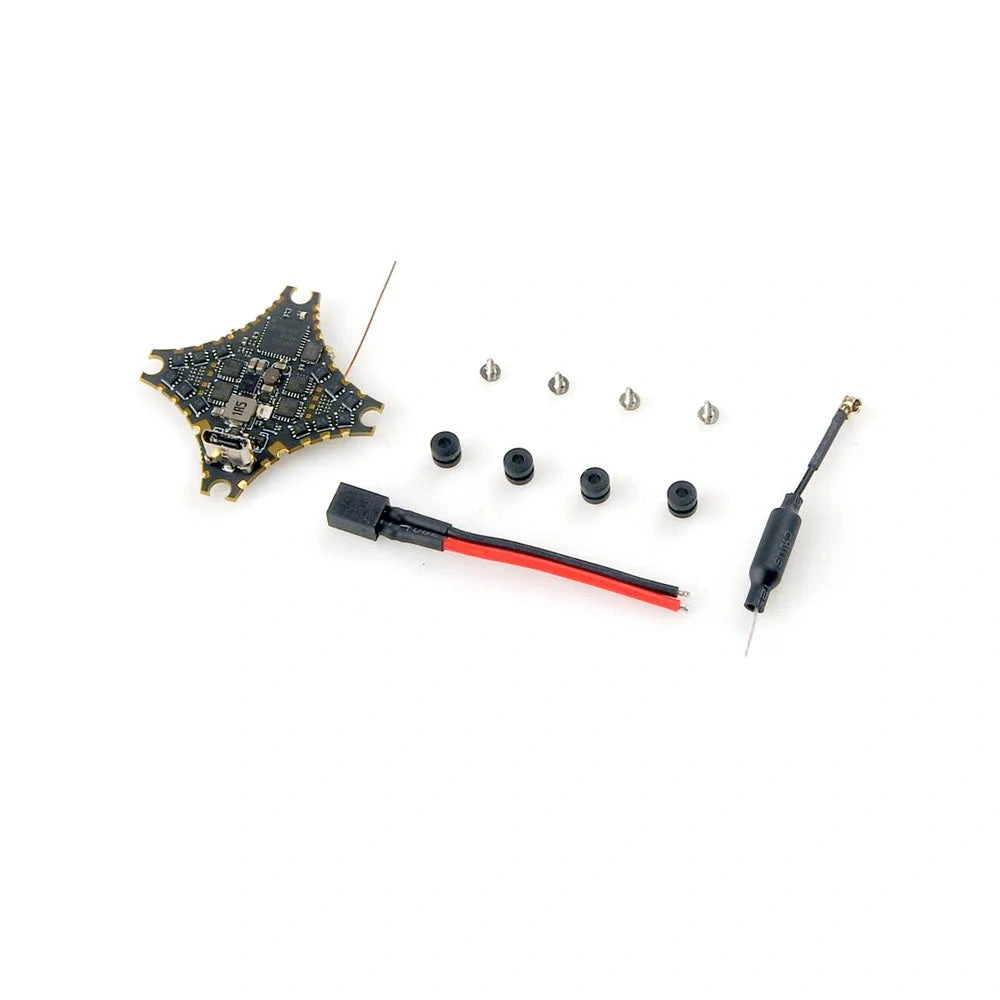

Package Included:
1x Happymodel SuperX ELRS AIO 5-IN-1 Flight controller
