Happymodel CrazyF405HD ELRS 1-2S AIO Flight Controller Built-in UART ELRS Receiver and 12A BLHELI_S ESC
Happymodel CrazyF405HD is a flight controller with a built-in Serial ELRS receiver and 4-IN-1 Blheli_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout, and supports 1-2S Lipo/LiHV lithium batteries, very Suitable for Digital HD Tinywhoop/Cinewhoop/Toothpick and other small FPV drones. The flight controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates a BMP280 barometer and 8Mbp blackbox, which greatly enhances the playability of the flight controller.
Specifications:
Brand Name: Happymodel
Item Name: CrazyF405HD ELRS 1-2S AIO Flight controller
Mount size: 25.5mmx25.5mm

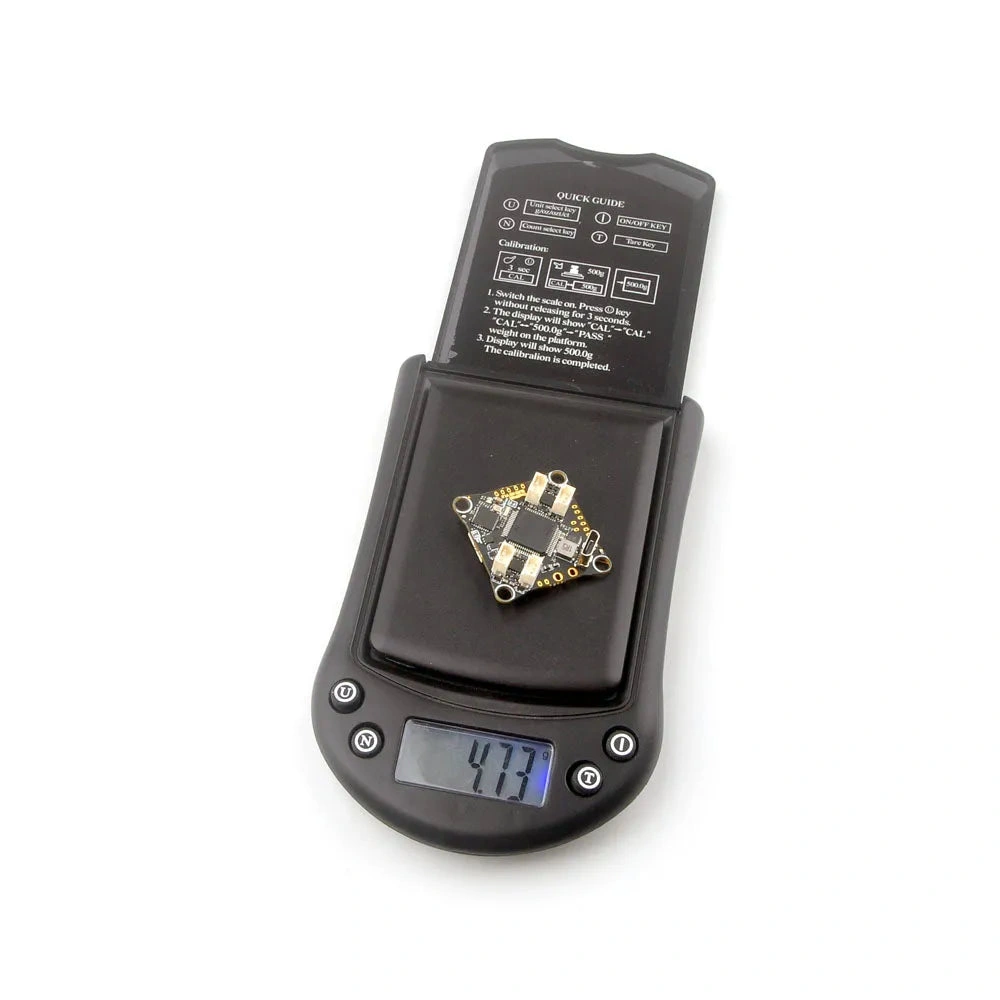

Weight: 4.8g without power lead wire
Firmware target: BetaflightF4
Support 1-2s Lipo/LiHV battery
Flight Controller

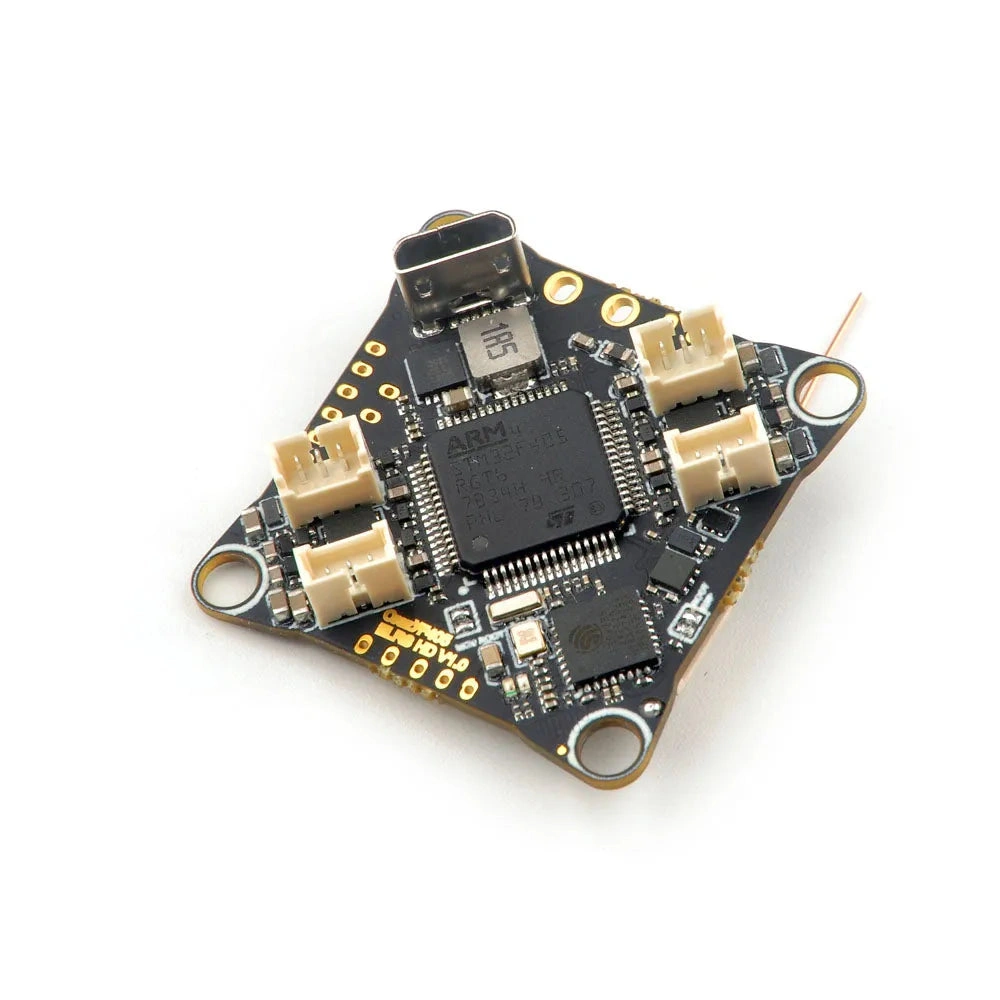

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz

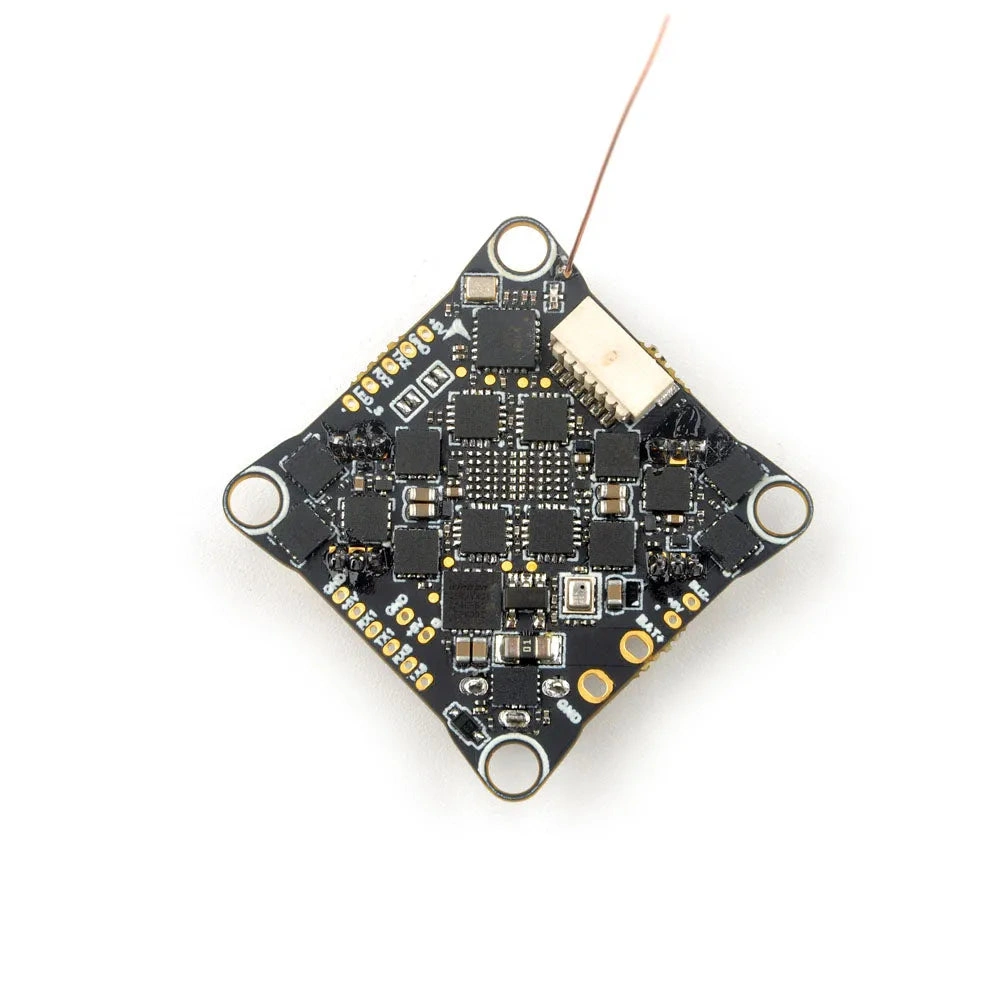

Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

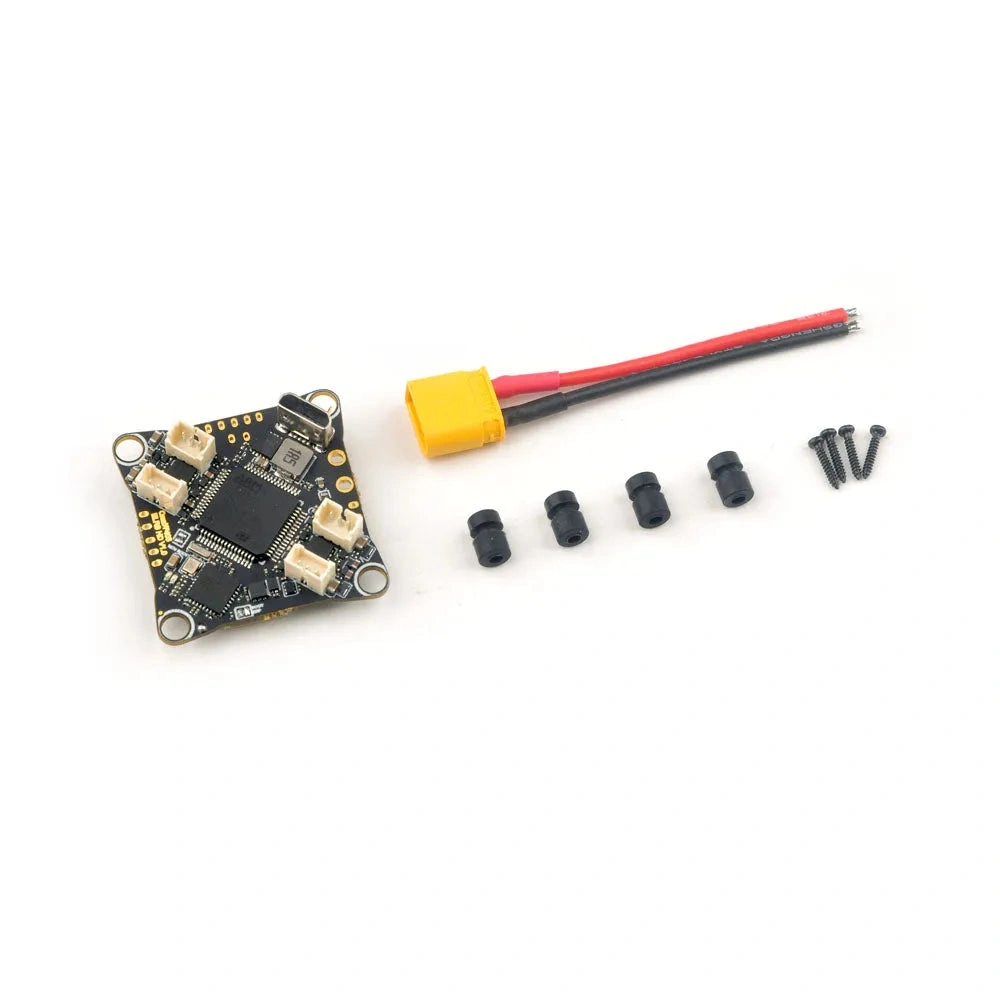

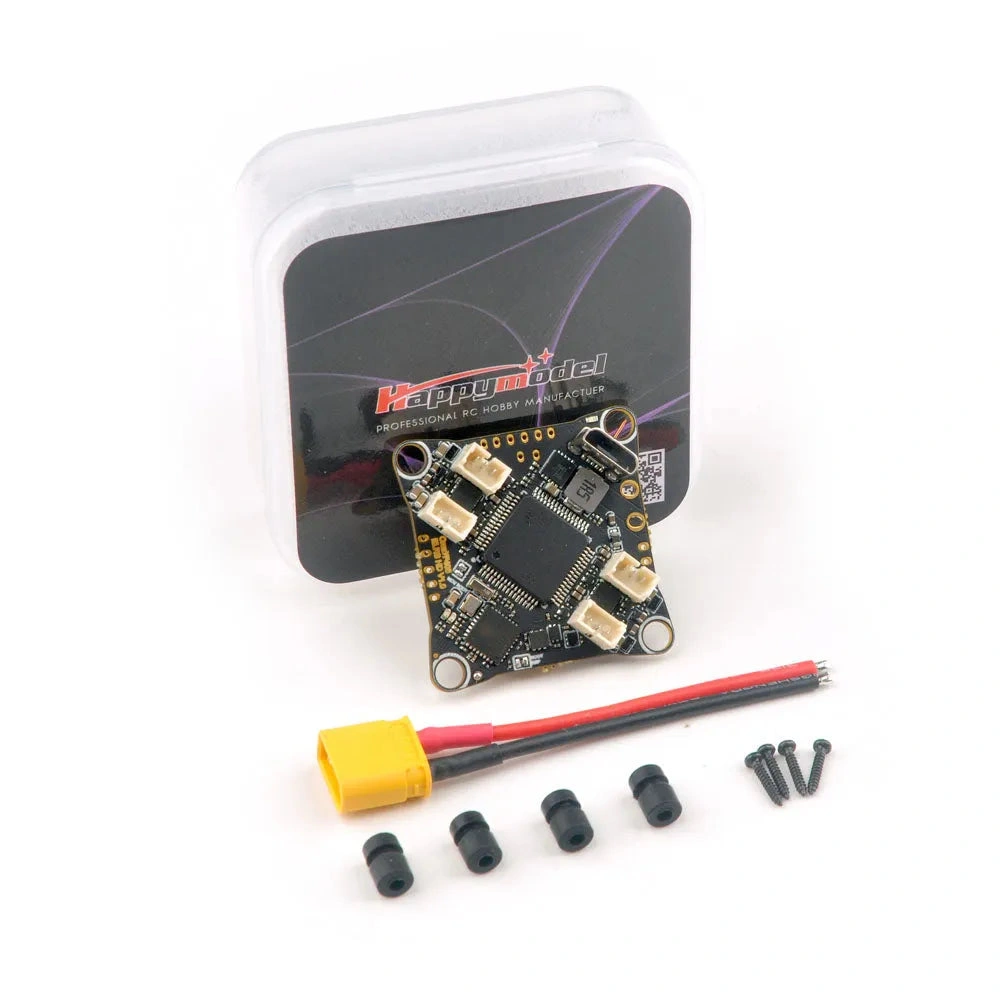

Package Included:
1* CrazyF405HD ELRS 1-2S AIO Flight Controller
