Moblite7 1S 75mm Whoop Drone: Ultra-Light FPV Racing Fun!

Moblite7: Unleash the Tiny Beast! 1S Ultra-Light FPV Drone for Thrilling Races!

Alright, check this out This ain't just a thing, it's a vibe. A whisper of the wild west, a splash of sunset on the Pacific, a secret handshake with the gods of cool. Feel that? Yeah, that's the feeling of owning something that's seen some shit and still looks damn fine. It's the perfect conversation starter, the ultimate icebreaker, the kind of thing that makes your life a little more interesting. So go on, treat yourself. You deserve a piece of awesome. Grab it before it disappears into the legend it already is.

$29.43 $32.70

num:

description

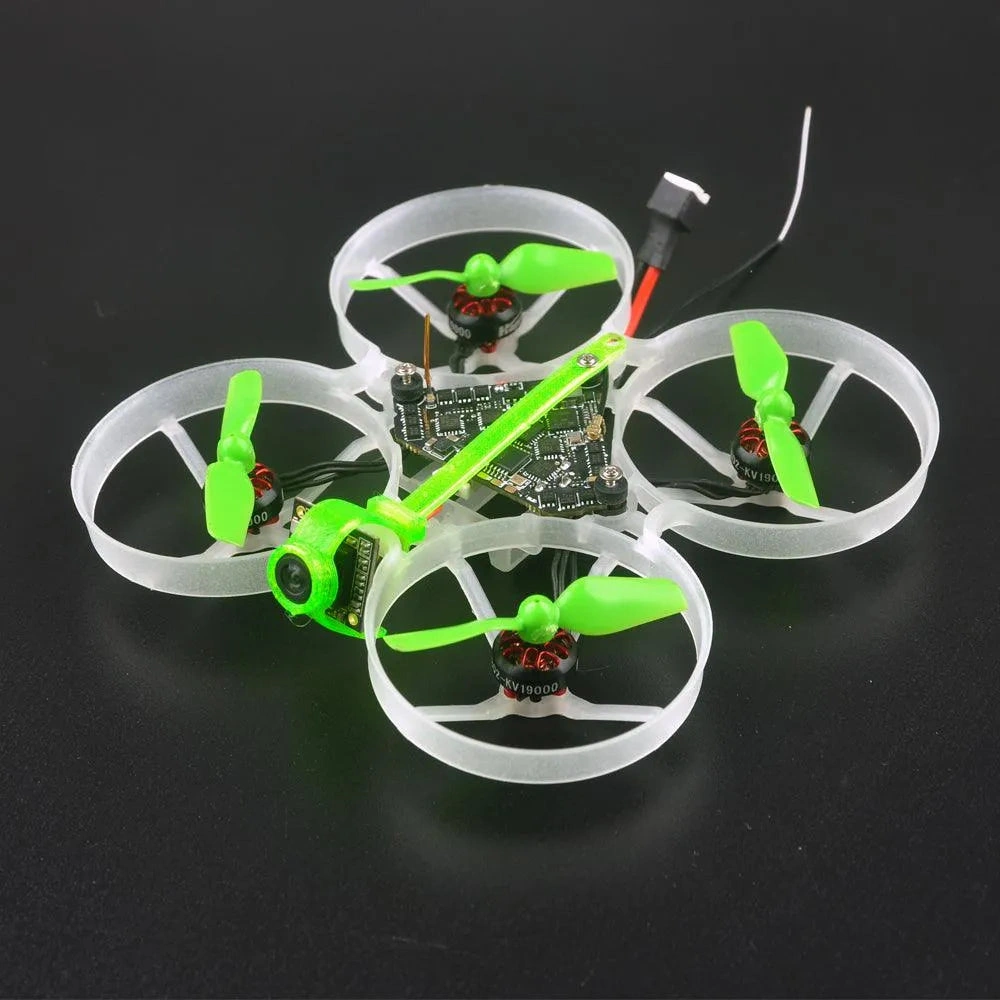

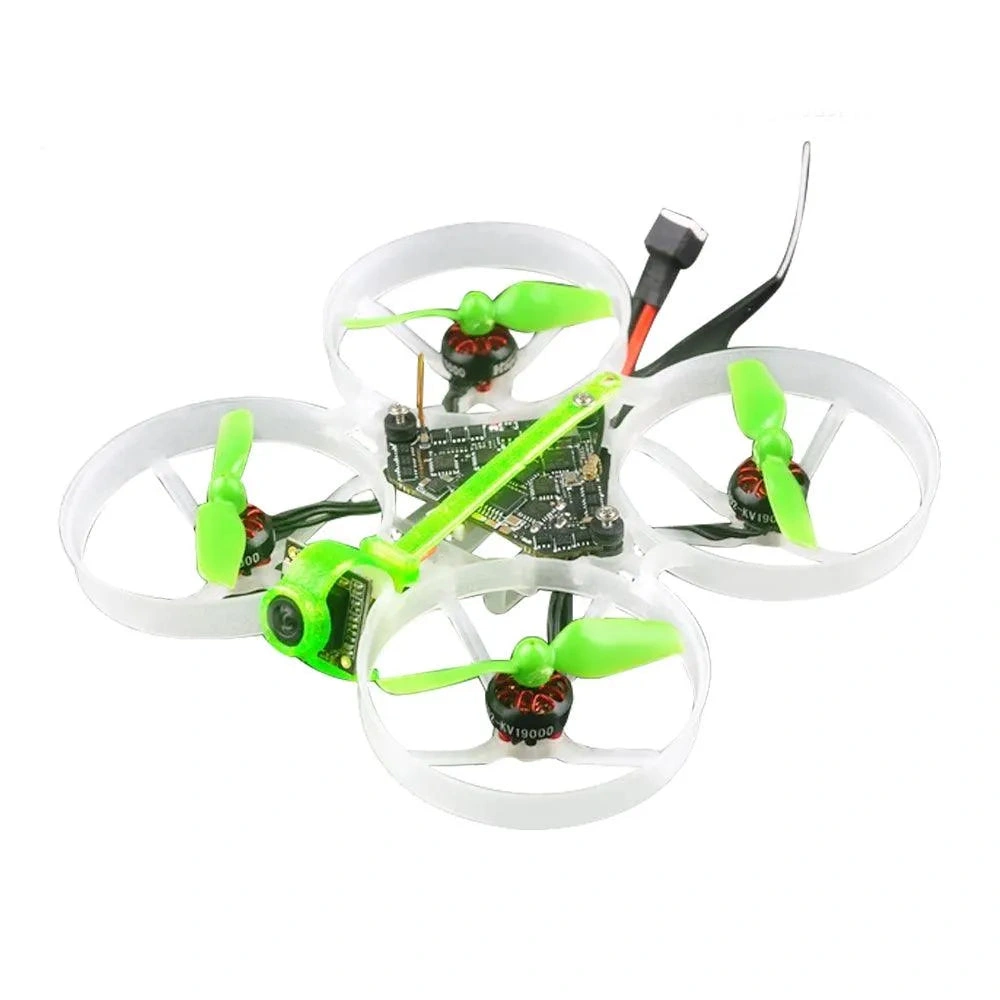

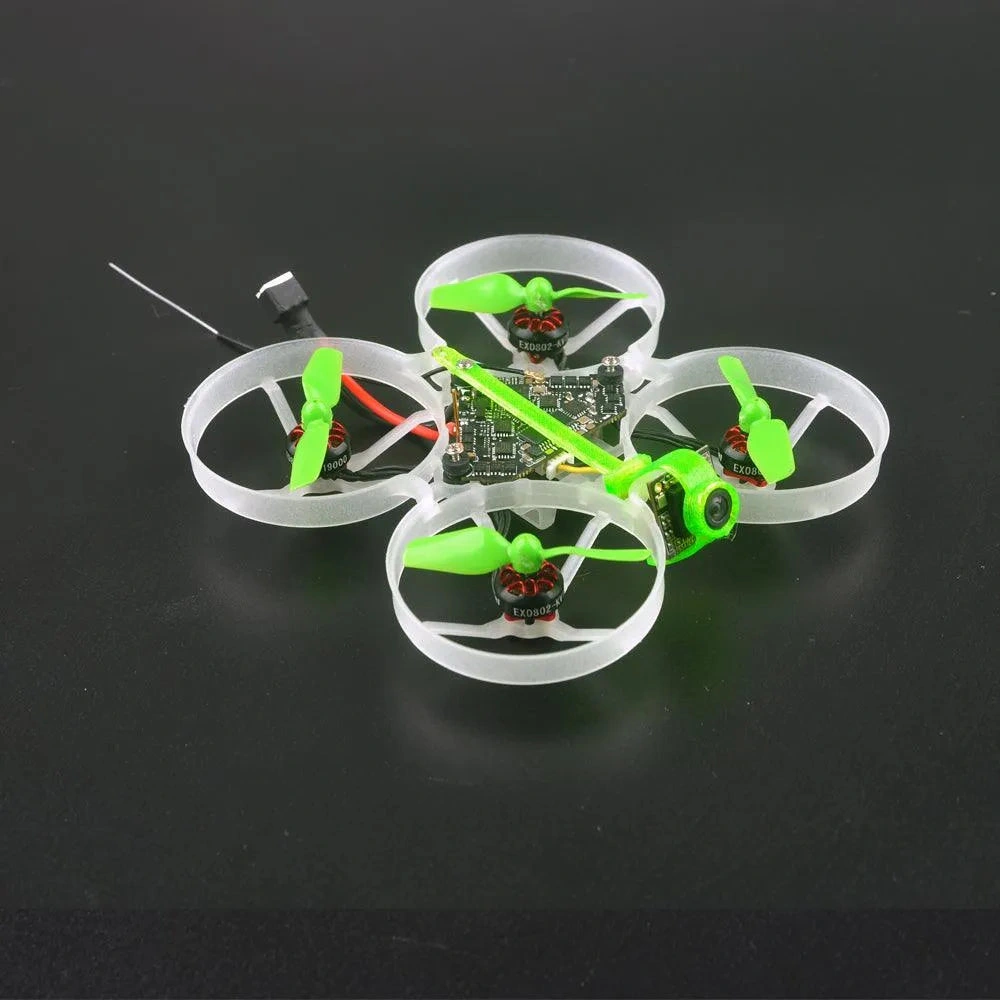

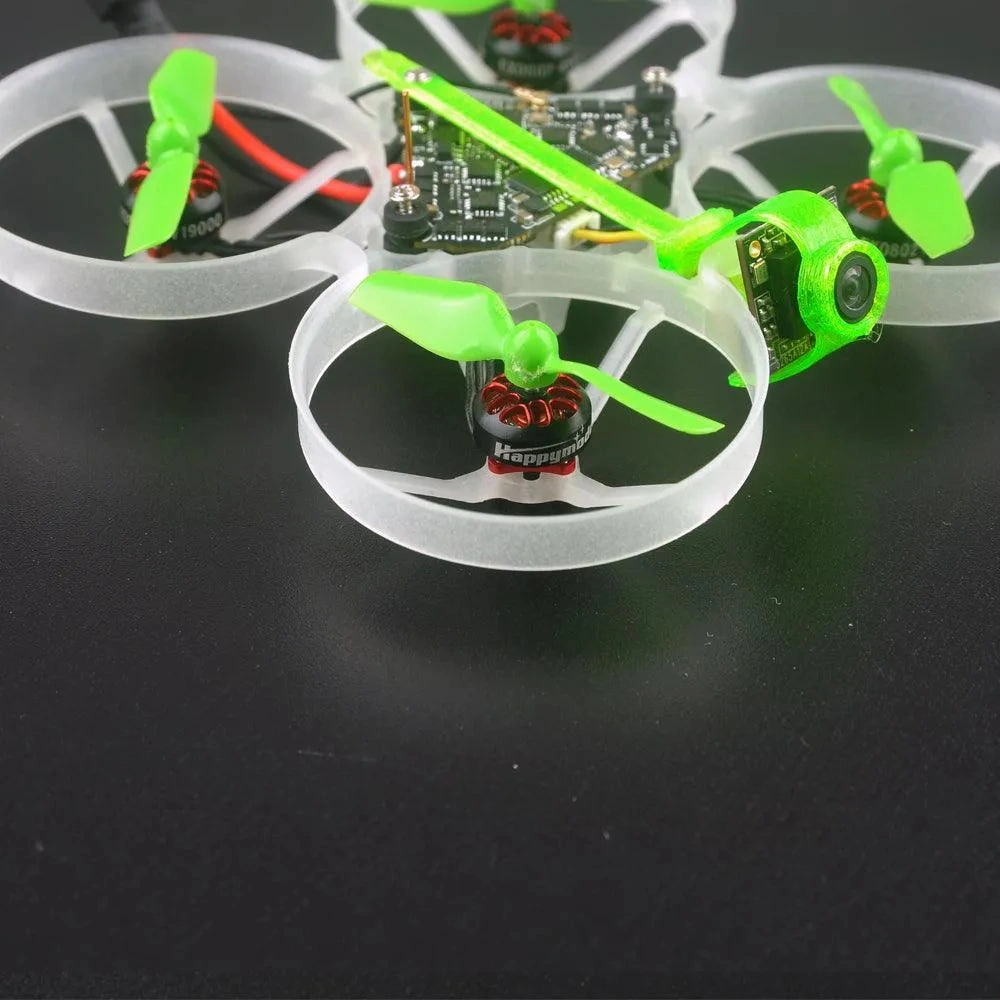

Happymodel Moblite7 1S 75mm Ultra-light Brushless Whoop FPV Racing Drone

Specifications:
Brand Name: Happymodel
Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97mm*97mm*25mm

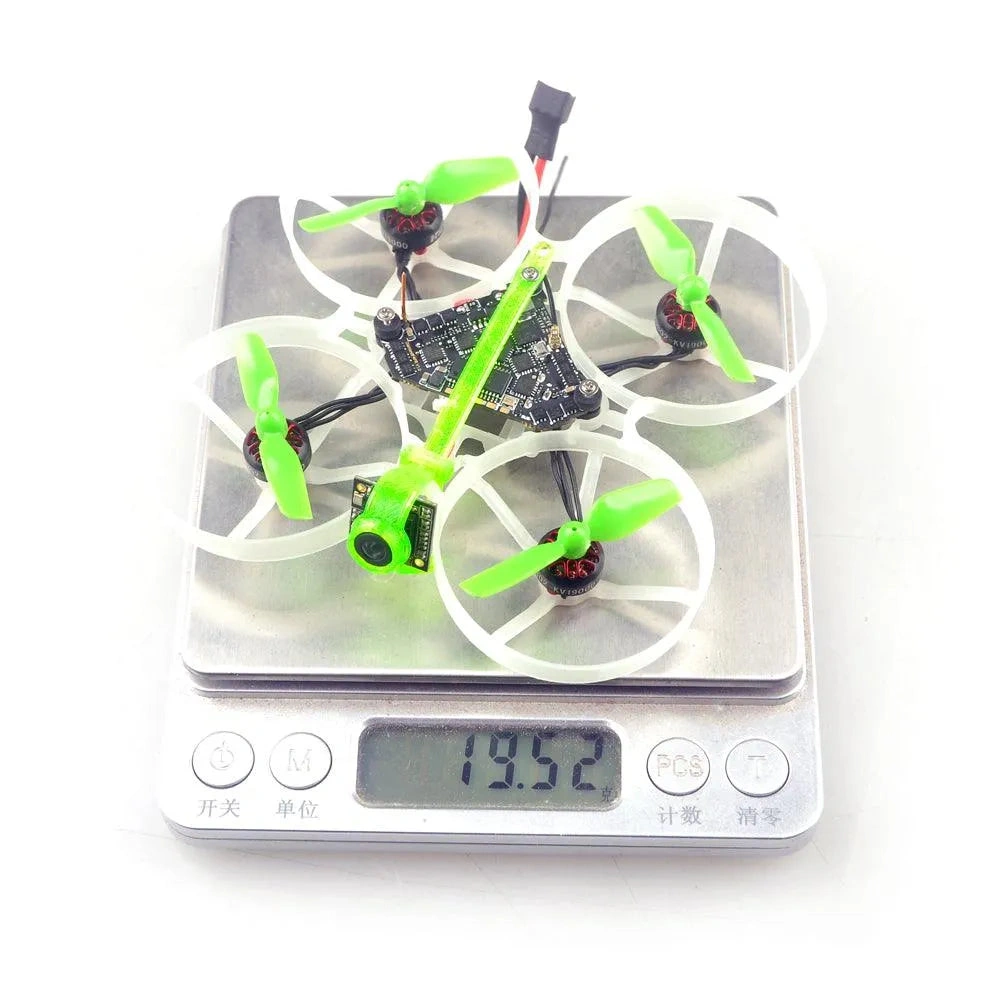

Weight: 19.5g (without battery)
Weight:36g(with Original 1s 650mah Lipo battery )

Features:
The lightest 1s 75mm brushless whoop
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell EX0802 brushless motors
Low profile Canopy design
VTX power switchable 25mw~200mw

Spare parts specifications:
Motor
Model: EX 0802 19000KV
Configuration:9N12P
Stator Diameter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only

Flight controller
(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels(include Race band)
Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3' CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery
Capacity:650mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx8mm
Weight: 16g
Connector: PH2.0

Package included:
75mm Frame*1
DiamondF4 FR built-in SPI Frsky receiver*1
EX0802 KV19000 Unibell brushless motor*4
HQPROP 40MMX2 propeller(4cw+4ccw)*1
Runcam Nano3*1
Built-in 5.8G 40ch 25mw-200mw VTX*1
1s 650mah Lipo battery*2
Propeller disassemble tool*1
Screwdriver*1

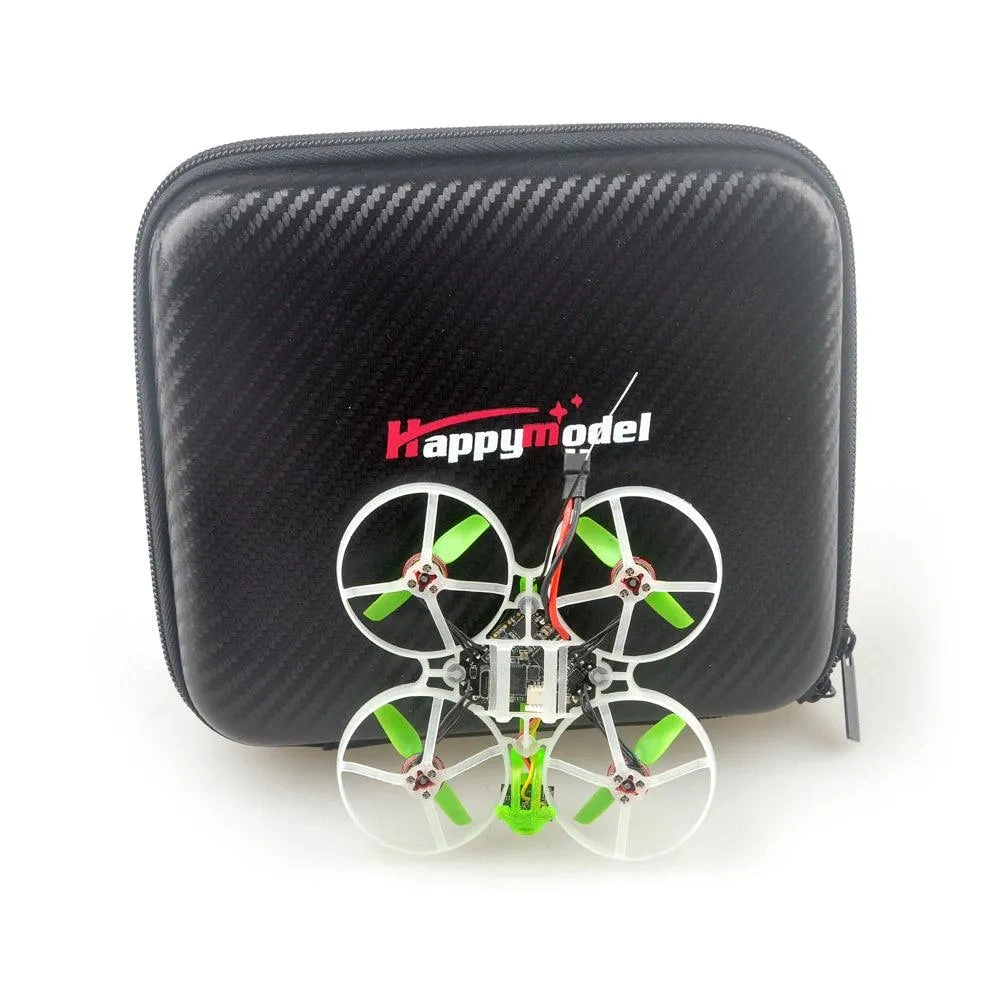

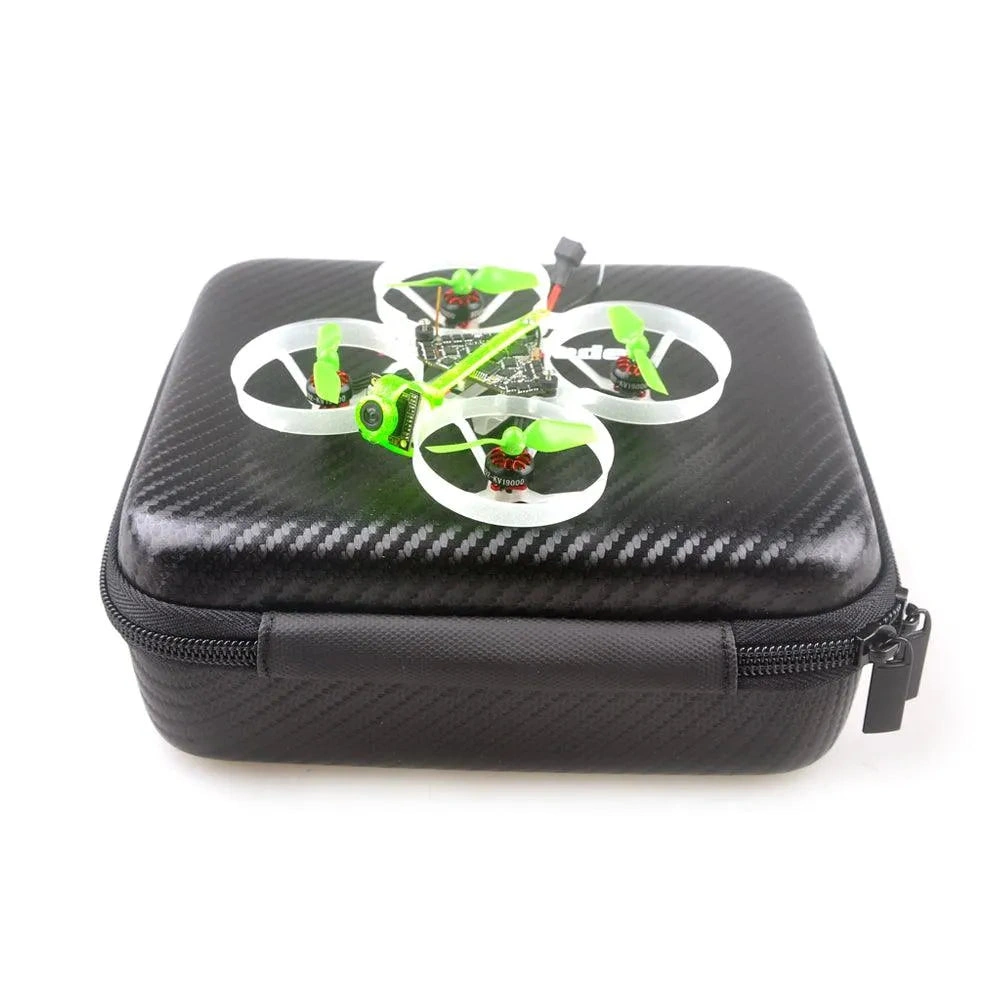

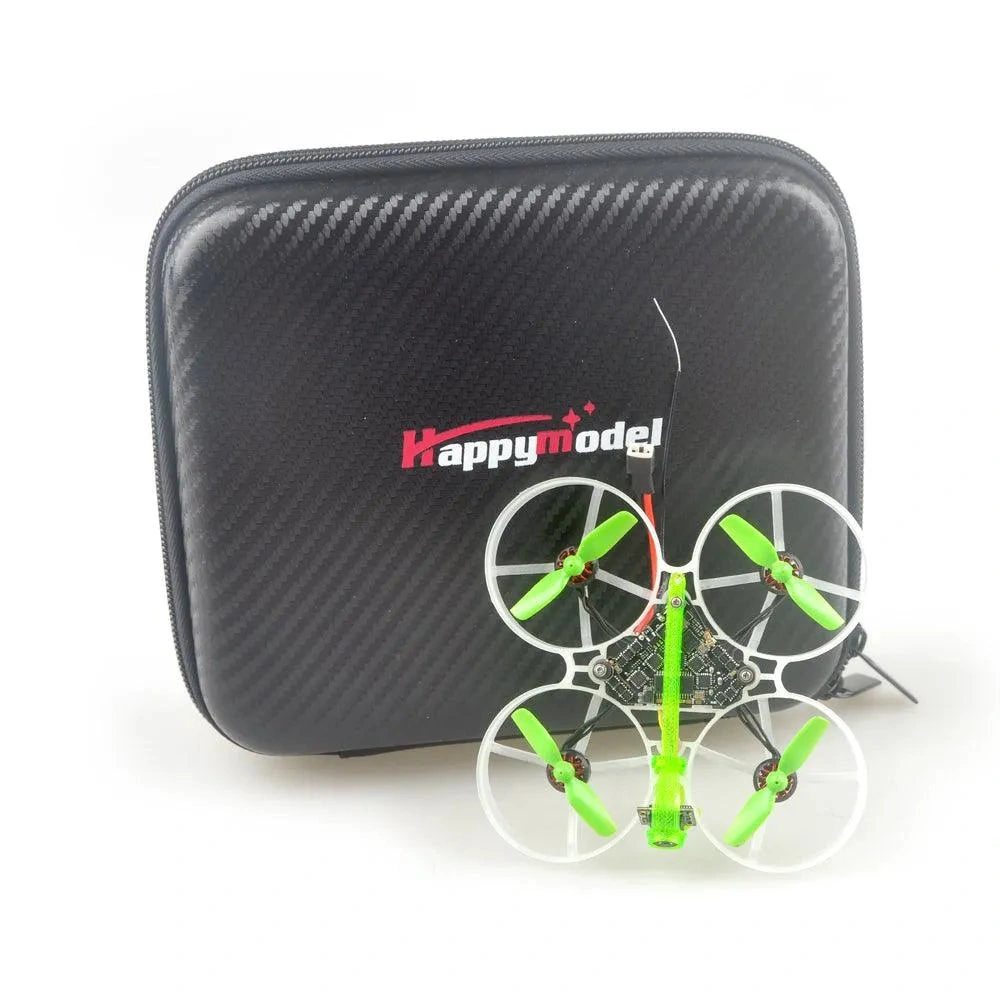

Happymodel Carry case*1
