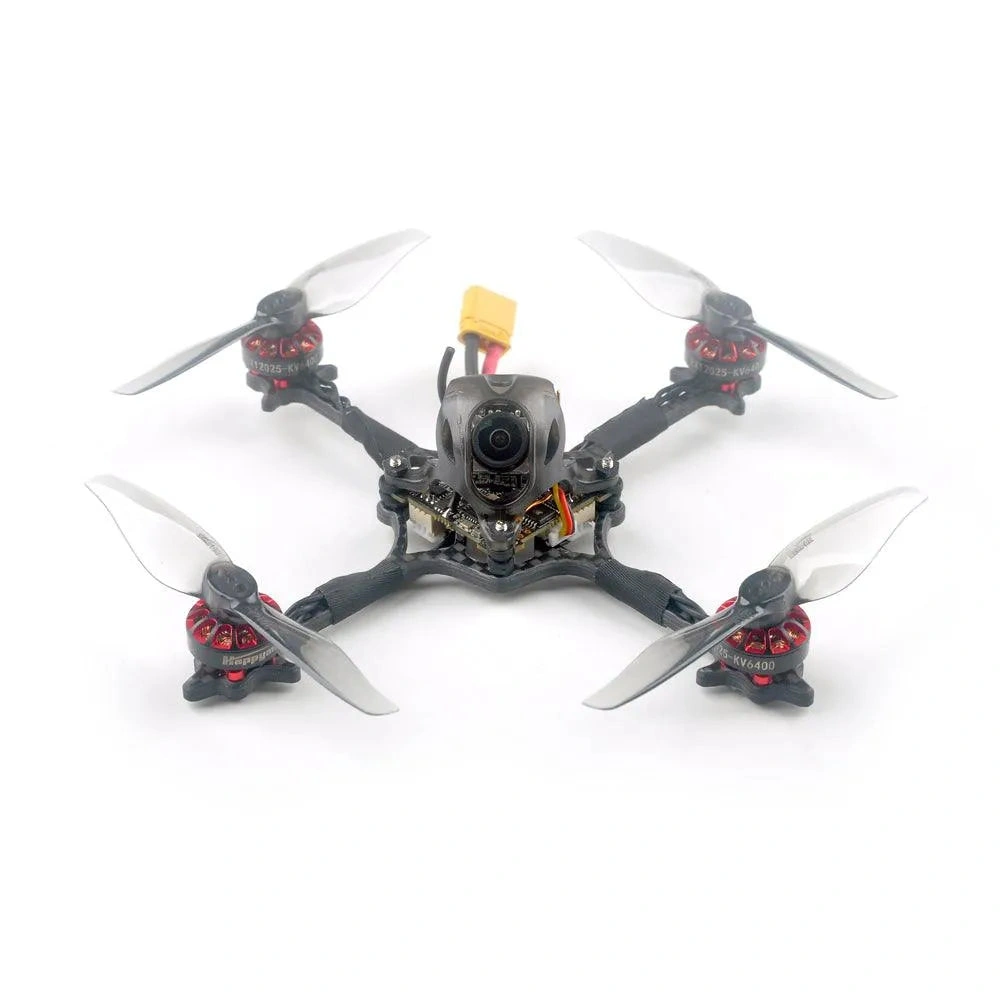

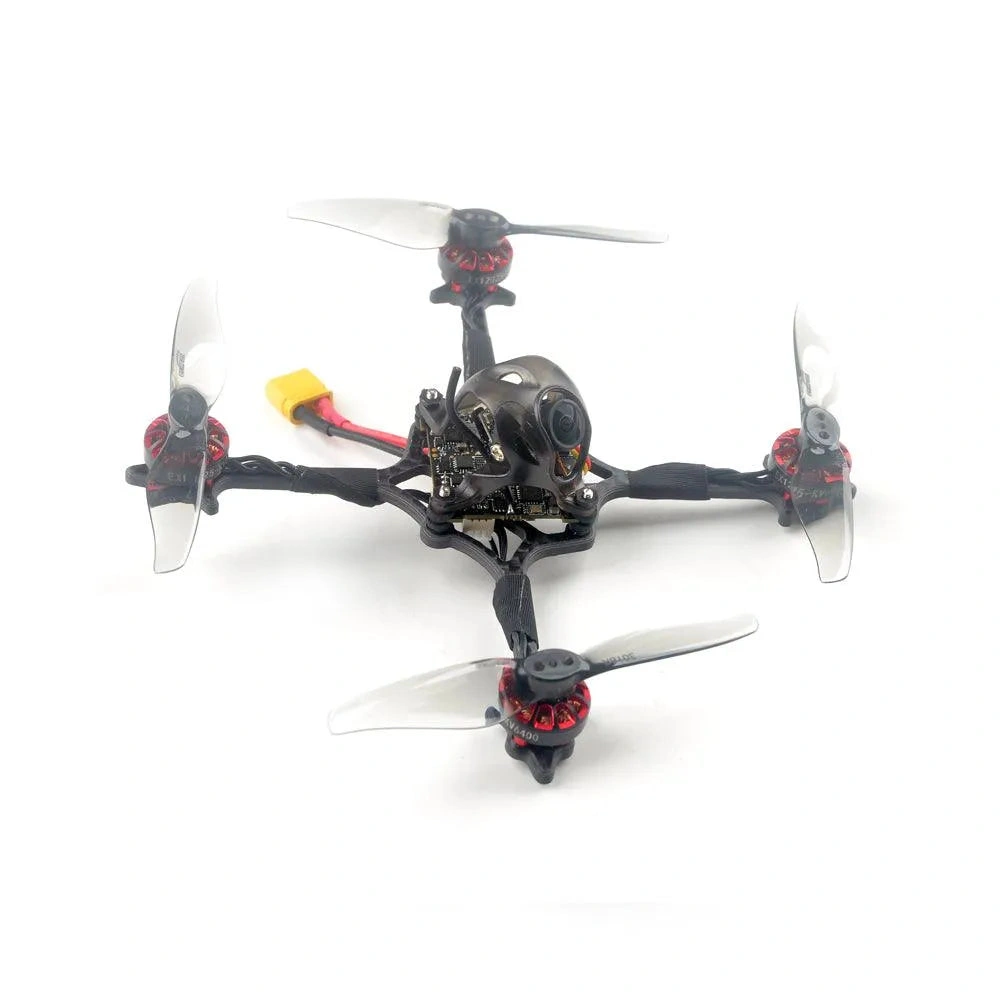

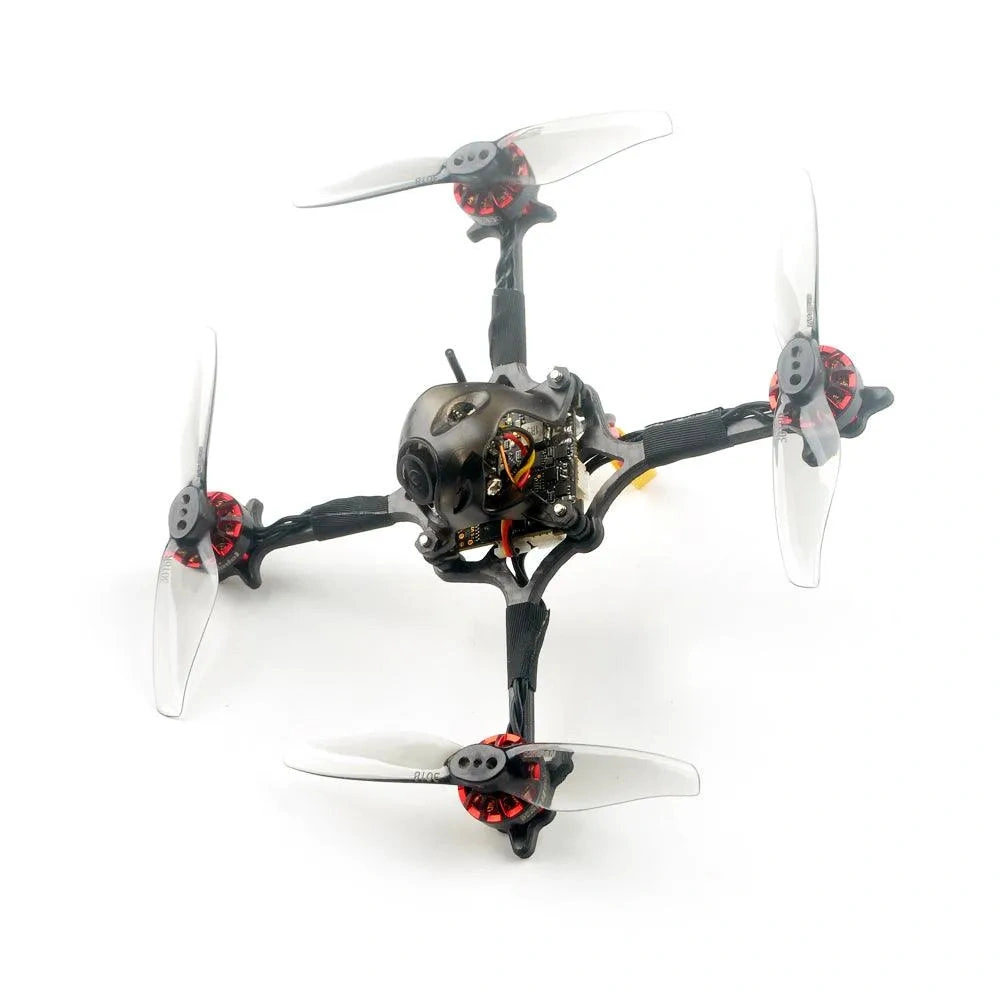

Happymodel 1-2S Crux3 3 inch Brushless Toothpick Drone with Frsky SPI/Flysky SPI/DSM2/X SPI/RXSR/TBS Receiver
Features:
41gram 1-2s brushless Toothpick drone
New AIO 4in1 CrazybeeX flight controller
CADDX ANT Camera
New 1202.5 brushless motor

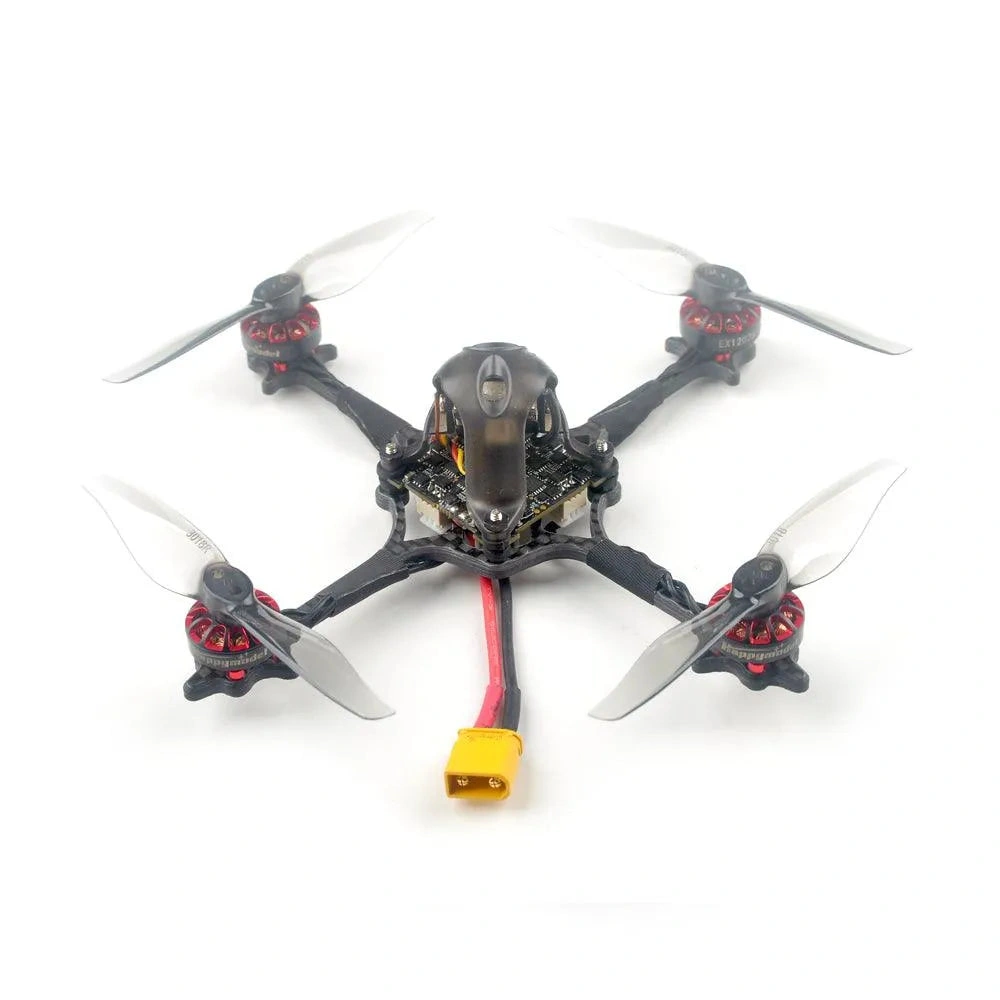

XT30 connector

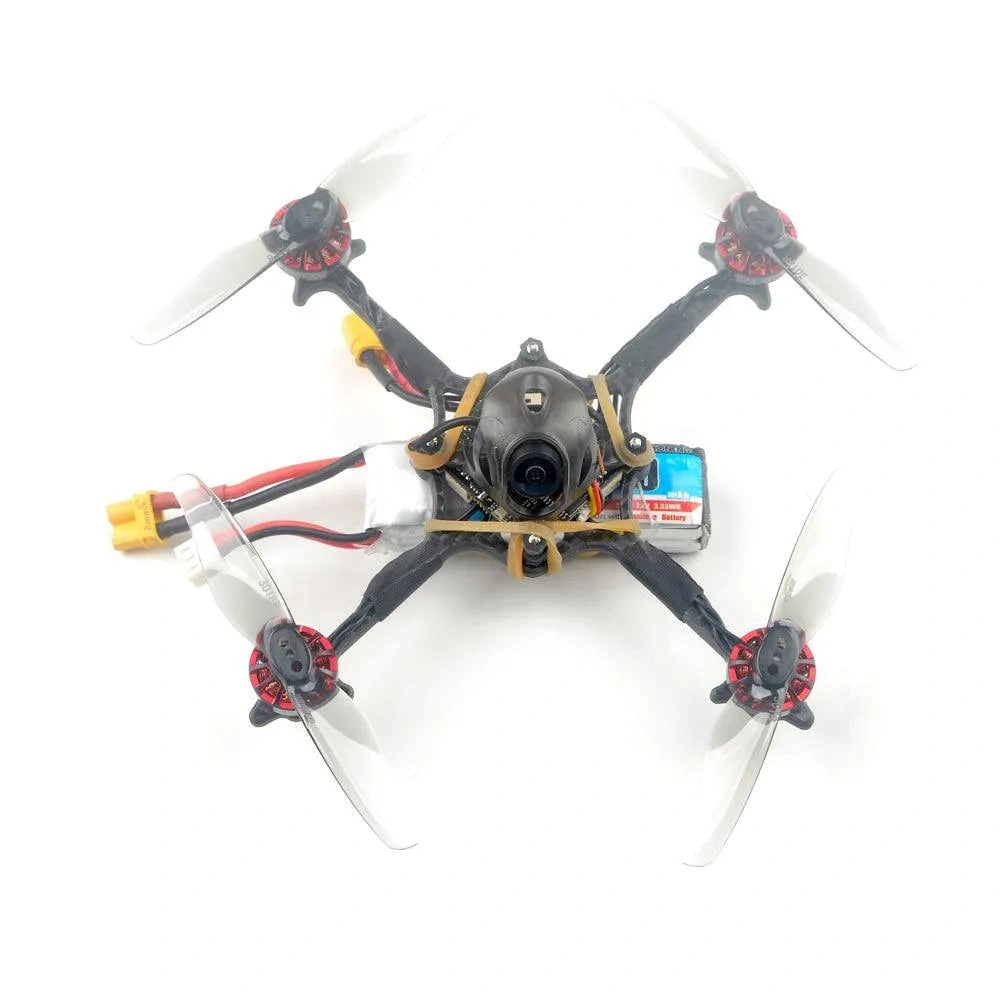

Recommend to use 2s 350mah/400mah/450mah/520mah battery（battery not included）

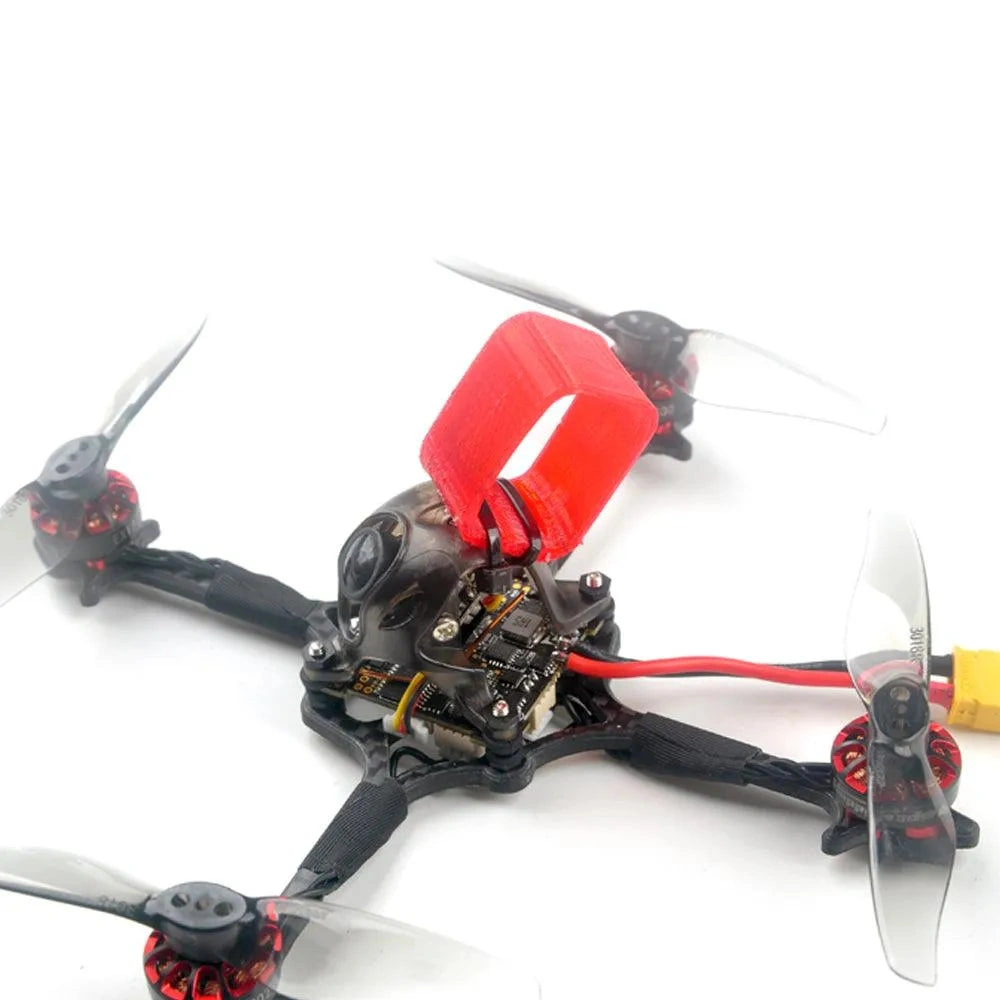

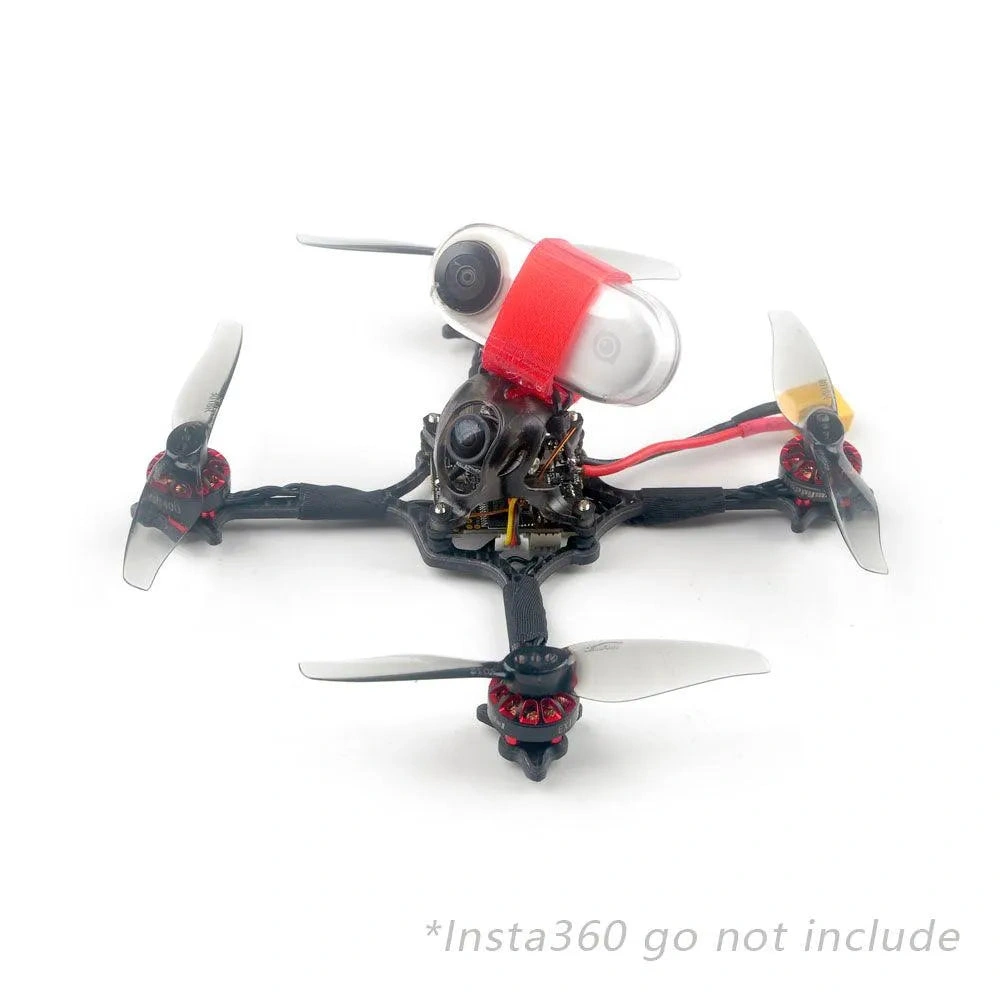

Compatible with Insta360 Go Camera
You may find the battery,Please click here.
Specifications：
Brand Name: Happymodel
Item Name: Crux3
Wheelbase: 115mm
Size: 97mmx97mmx35mm(without propellers)

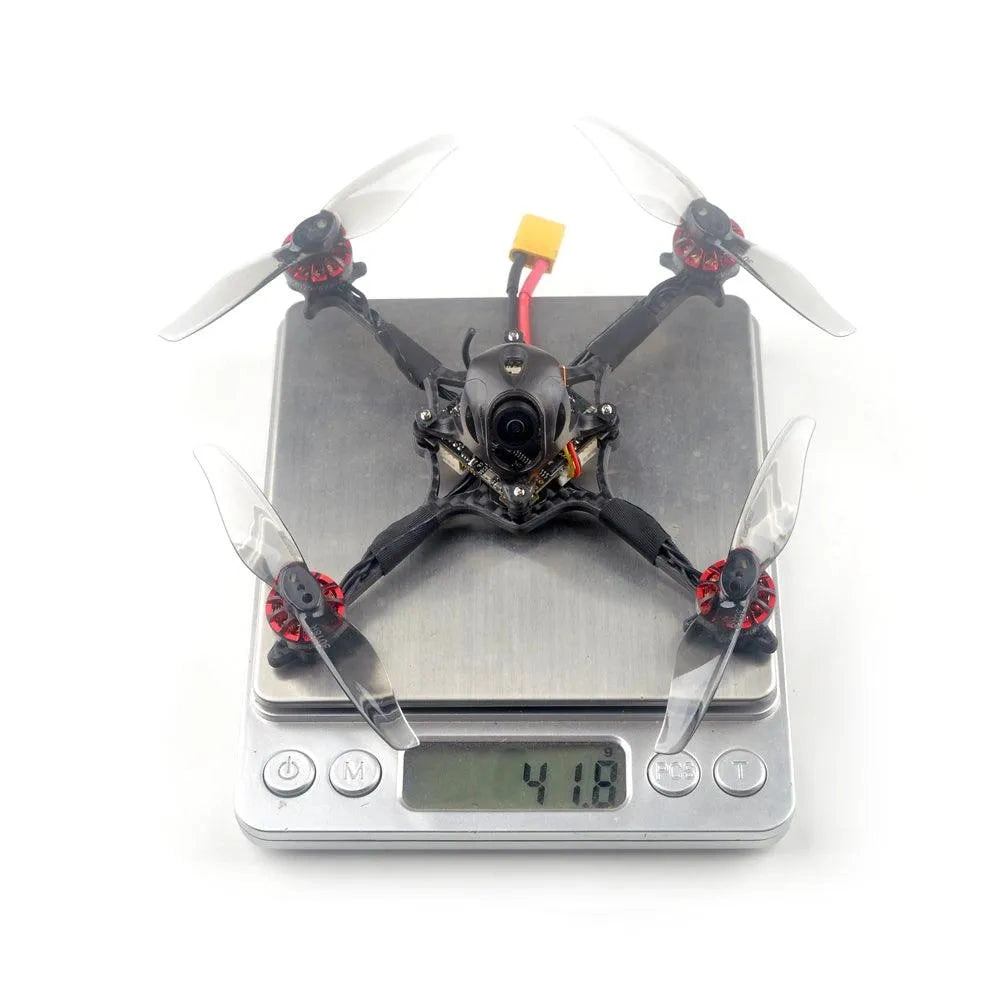

Weight: 41g(without battery)
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Internal SPI DSM2/DSMX version(Compatible with Spektrum or Multiprotocol DSM2/X radio)
External Frsky RXSR receiver version(ACCST D16 sbus output)
External TBS Crossfire Nano receiver version
Introduction:

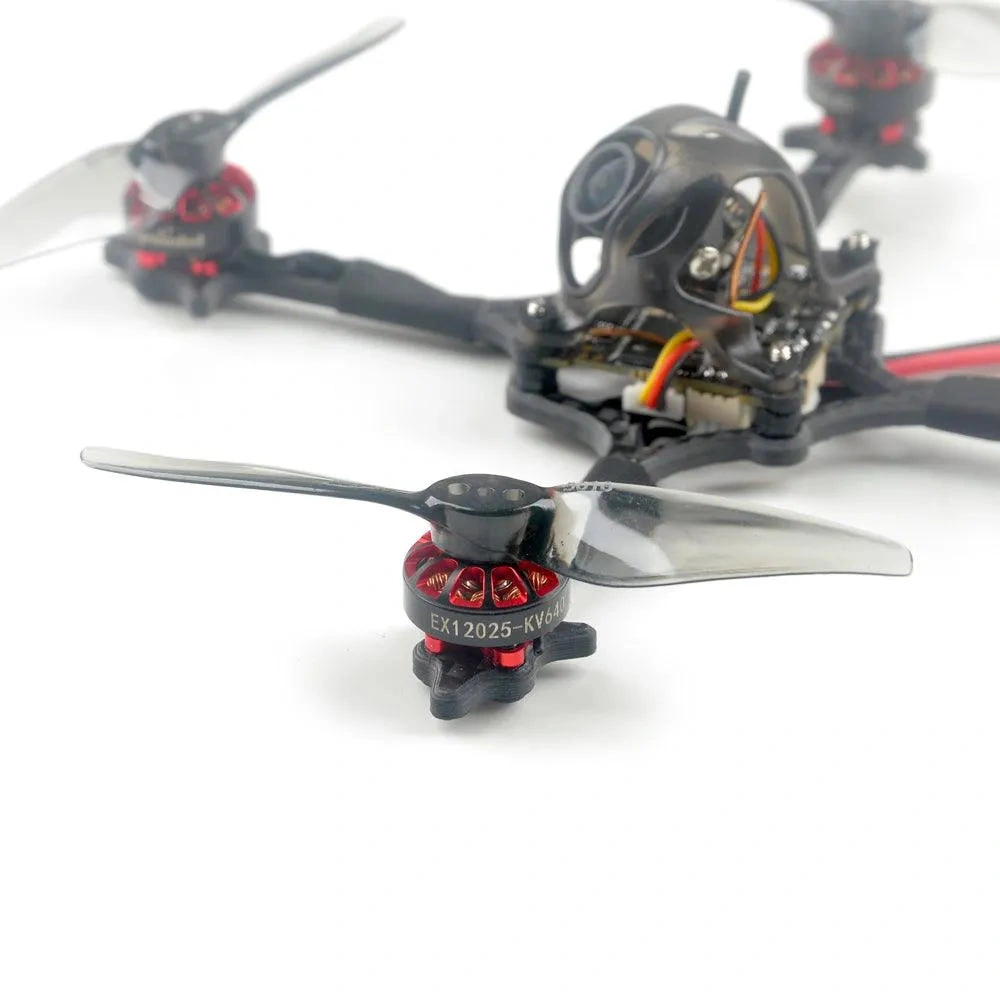

Motor
Mode: EX1202.5 KV 6400
Configuration:9N12P
Stator Diameter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1-2S
Propellers
Gemfan 3018-2
Center Thickness:5.5mm
Prop Diameter:76.5mm
Center Hole diameter:1.5mm
Flight controller
(Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS
(DSM2/X SPI RX version)CRAZYBEEX DXS V1.0 FC firmware target:CrazybeeF4DXS
(External Frsky RXSR version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX
(External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver or no receiver
Built-in 5V 1A BEC
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard Flysky SPI receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support
Onboard DSM2/X SPI receiver Version
SPI BUS receiver DSM2/DSMX compatible
Channels: Max 12ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
RSSI enable(show on the goggles)
External Frsky R-XSR receiver version
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 3.5V~10V
Operating Current:70mA@5V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
Could support Frsky New ACCESS Protocol ( Upgrade firmware)
External TBS CRSF Nano receiver version
Original TBS CROSSFIRE Receiver ,CRSF Protocol , Official TBS transmitter compatible
Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Caddx ANT 1200tvl camera
Image Sensor: 1/3' CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

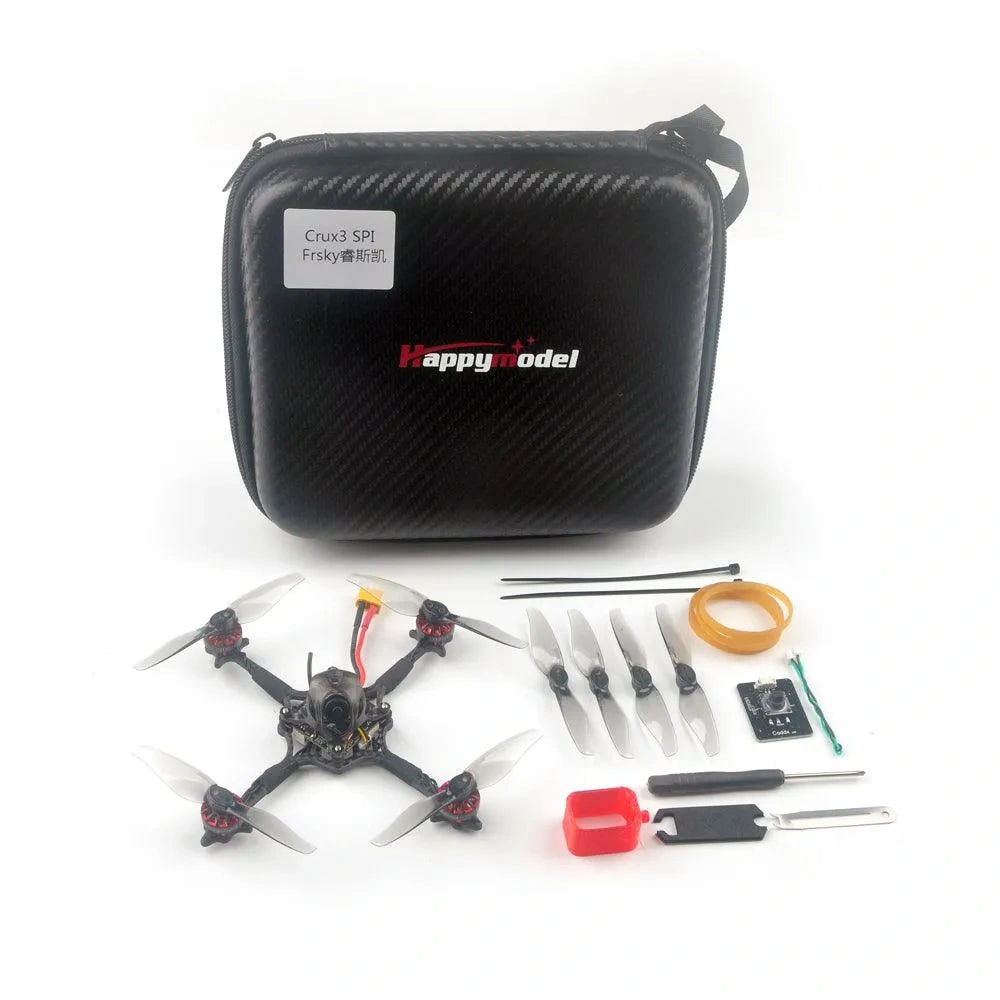

Package included:
Item Name
1*Crux3 Frame and canopy
Option1: CrazybeeX FR V2.2 built-in internal Frsky SPI D8/D16 receiver
Option2: CrazybeeX FS V2.2 built-in internal Flysky SPI receiver
Option3:CrazybeeX DXS V1.0 built-in internal DSM2/DSMX SPI receiver
Option4:CrazybeeX PNP V2.2 with External Frsky RXSR receiver
Option5:CrazybeeX PNP V2.2 with External TBS crossfire nano receiver
4*Happymodel EX1202.5 KV6400 brushless motor
1*Gemfan 3018 bi-blade Propellers(4cw+4ccw)
1*Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1*5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
1*Screw Driver
1*Propeller disassemble tool
1*Happymodel Handbag
