Power Up! IMAX B6AC Charger - Your Battery's Best Friend.
Alright, buckle up buttercup, because this ain't your grandma's toaster oven. This is the culinary equivalent of a monster truck rally in your kitchen. We're talkin' flavor explosions, texture sensations, and dishes so good, they'll make you wanna do a little jig right there on the linoleum. Forget boring beige appliances, this is a statement piece, a conversation starter, a culinary command center. Prepare for tastebud fireworks because this thing's gonna blow your mind. You've been warned. Now, are you ready to cook?

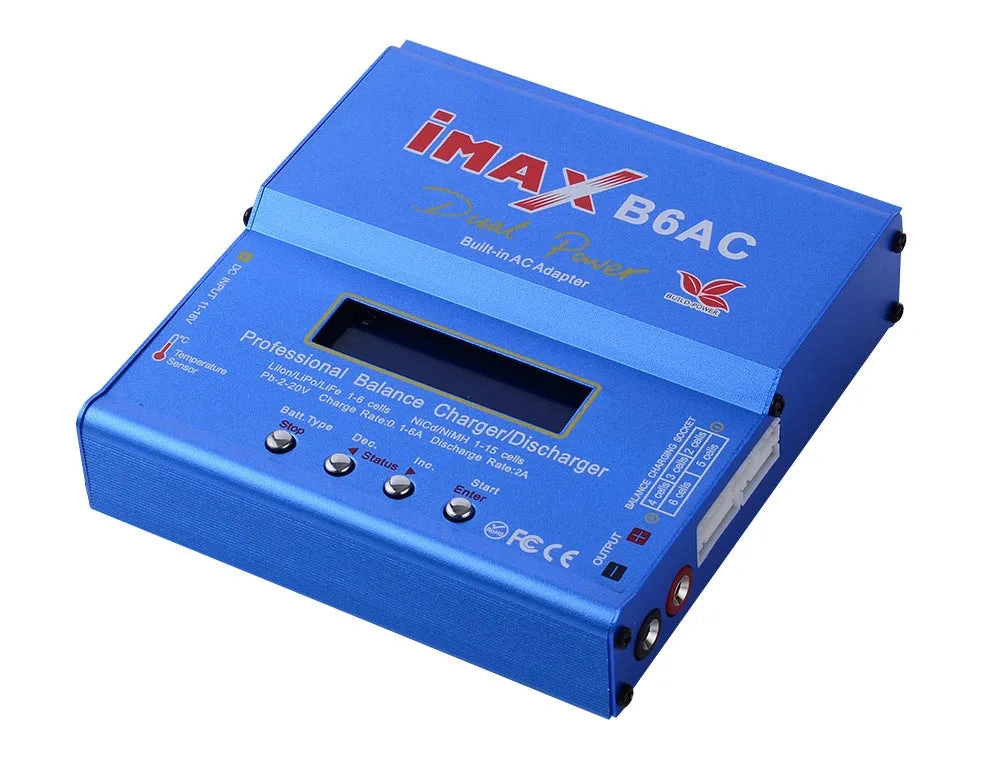

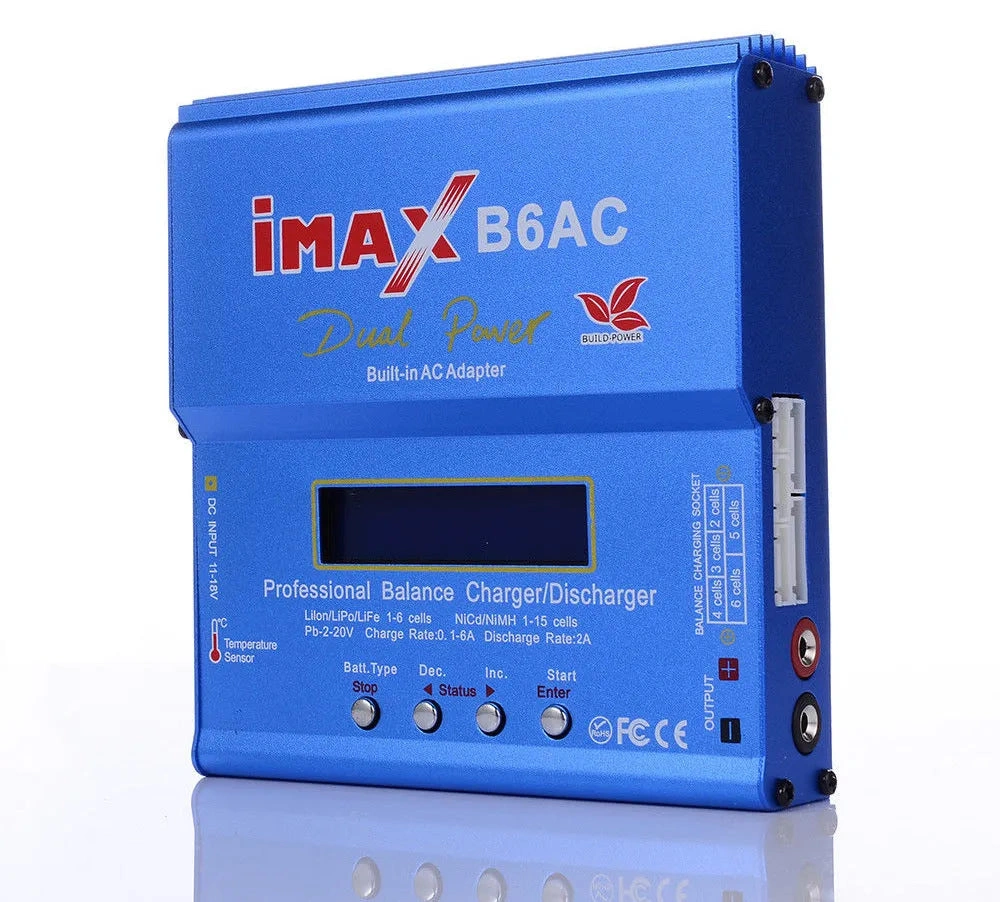

Features Of Imax B6AC
- 100% brand new, high-quality product
- Fast charger with a powerful microprocessor for superior performance
- Optimized software for enhanced operation
- Built-in independent lithium battery balancer
- Balances individual cells during battery discharging
- Compatible with various types of lithium batteries
- Supports both fast charge and storage modes for lithium batteries
- Operating voltage range: DC 10.0-20.0V
- AC to DC adaptor: DC 10.0-20.0V/6A
- Maximum charging power: 80W
- Maximum discharging power: 10W
- Charge current range: 0.1A – 6.0A
- Discharge current range: 0.1A – 2.0A
- Balancing current for Li-Po: 300mAh per cell
- NiCd/NiMH battery cell count: 1-15 cells
- Li-Ion/Polymer battery cell count: 1-6 series
- Pb battery voltage range: 2V – 20V
Specifications Of Imax B6AC
- Size: 136 x 141 x 34mm
- Net weight: approx. 800g
- Package weight: approx. 820g
Packing Content:
- 1 x IMAX B6AC battery balance charger (including accessories)

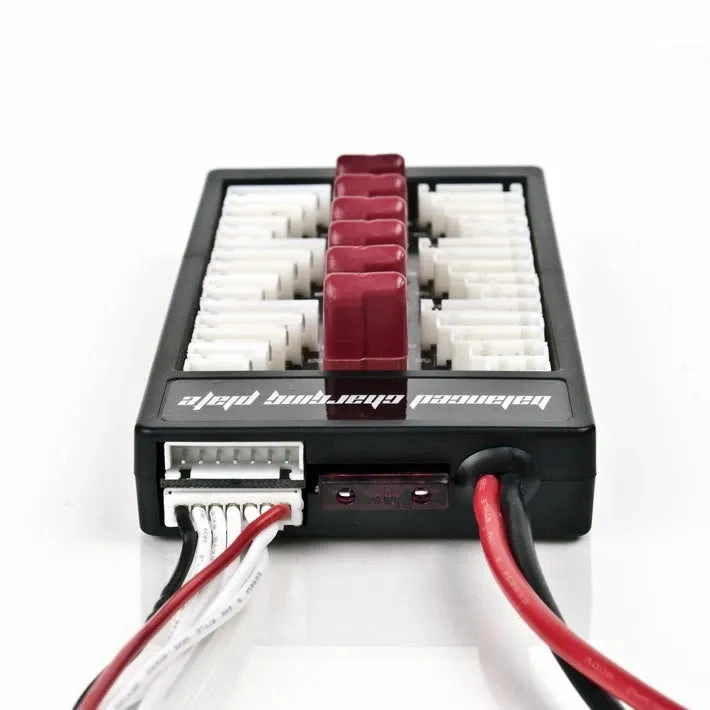

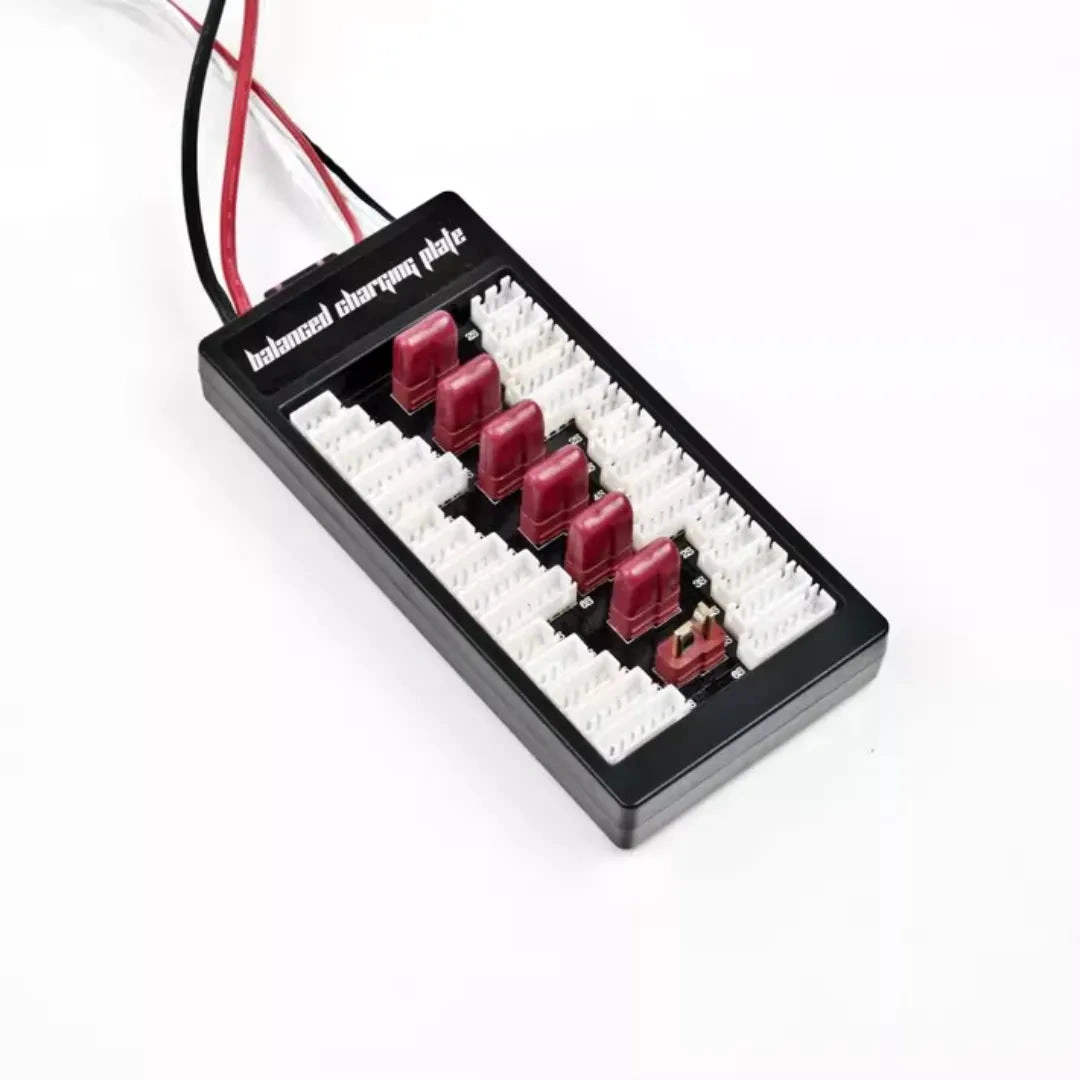

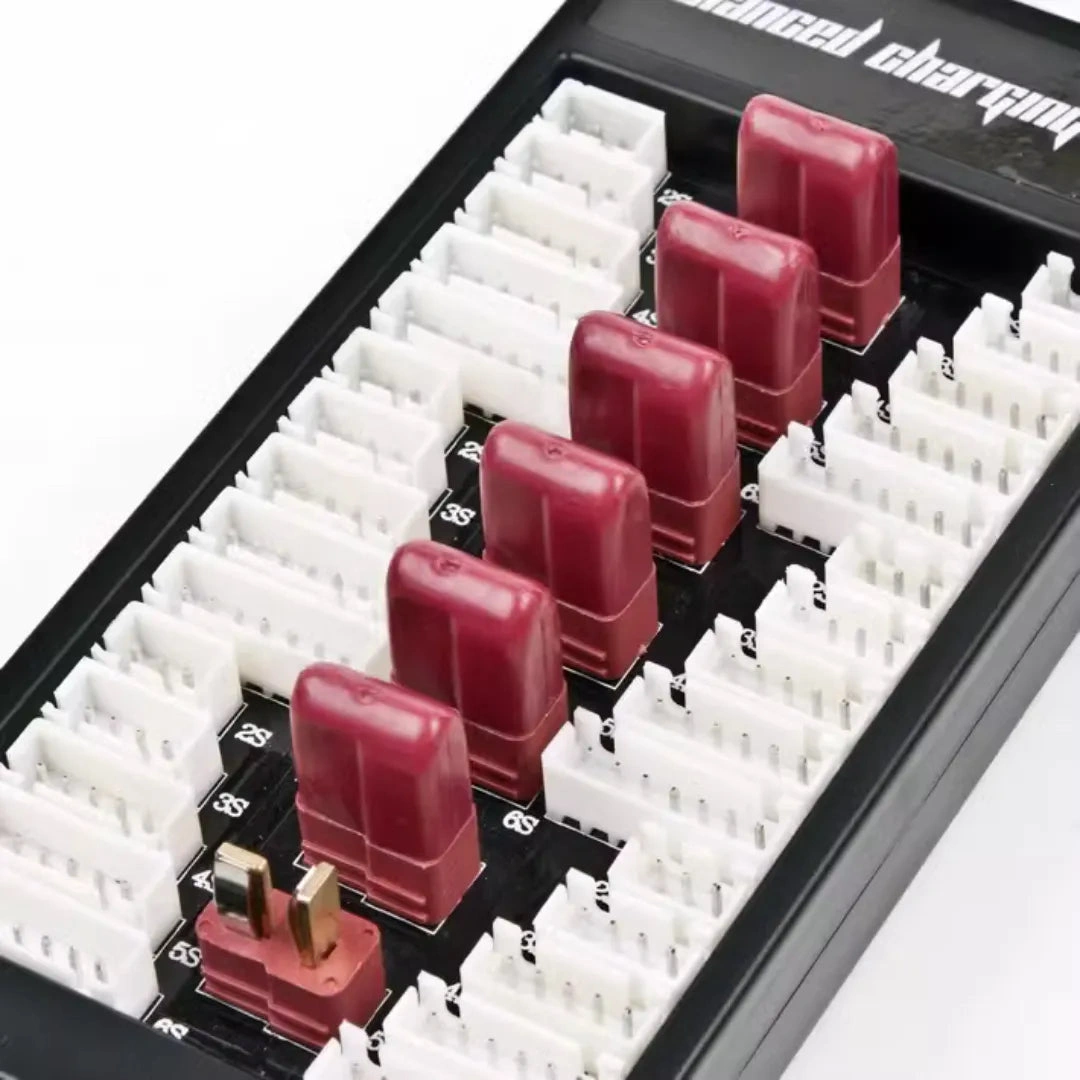

Features of Parallel Charging Board
Parallel balance charging for 6 sets of the same type of battery packs with consistent cell count (2S to 6S). It can simultaneously support 6 sets of 2S, 6 sets of 3S, 6 sets of 4S, 6 sets of 5S, or 6 sets of 6S for parallel balance charging.
Strong Short Circuit Protection (Equipped with a 40A fuse on top, ensuring safer charging).
Powerful Expansion Function (Can parallel charge three charging boards at once, allowing for simultaneous balance charging of 18 battery packs). The functionality is powerful, making it the perfect choice for model enthusiasts!
Detailed Specifications:
- Balance output wires use 20AWG multi-strand silicone wire.
- Main input wires use 14AWG soft silicone wire (400 cores, high-temperature resistance up to 200°C).
- Equipped with safety protection T-plug silicone caps.
- Uses high-quality AMASS output connectors.
- Thickened PCB copper foil (FR-4 1.6mm thick, 20Z copper thickness) can safely handle 40A current!
