Mobula7 HDZero: Freestyle Fury Unleashed. Ultra-Light, Ultimate Thrills. 75mm Whooping Wonder. Grab Yours Now.
Alright partner, saddle up because this ain't just a thing, it's a vibe. This here is the real deal, the one you've been searchin' for. Crafted with grit and a whole lotta soul, it's gonna change the way you… well, everything. Think rugged individualism meetin' pure, unadulterated awesome. Get ready to turn heads, spark conversations, and generally just be the coolest cat in the room. Trust us, you NEED this. It's not a want, it's a lifestyle. Y'all ready to ride.
2025 Upgraded & New Release!

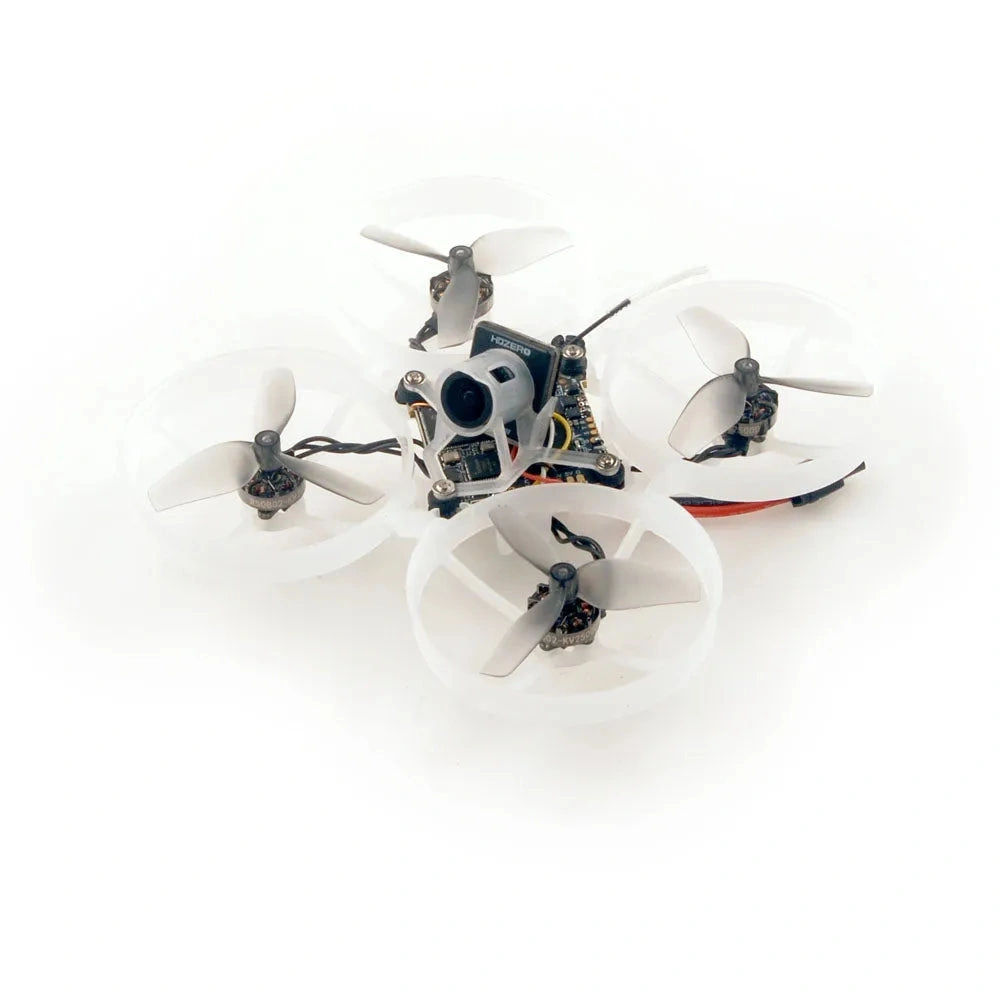

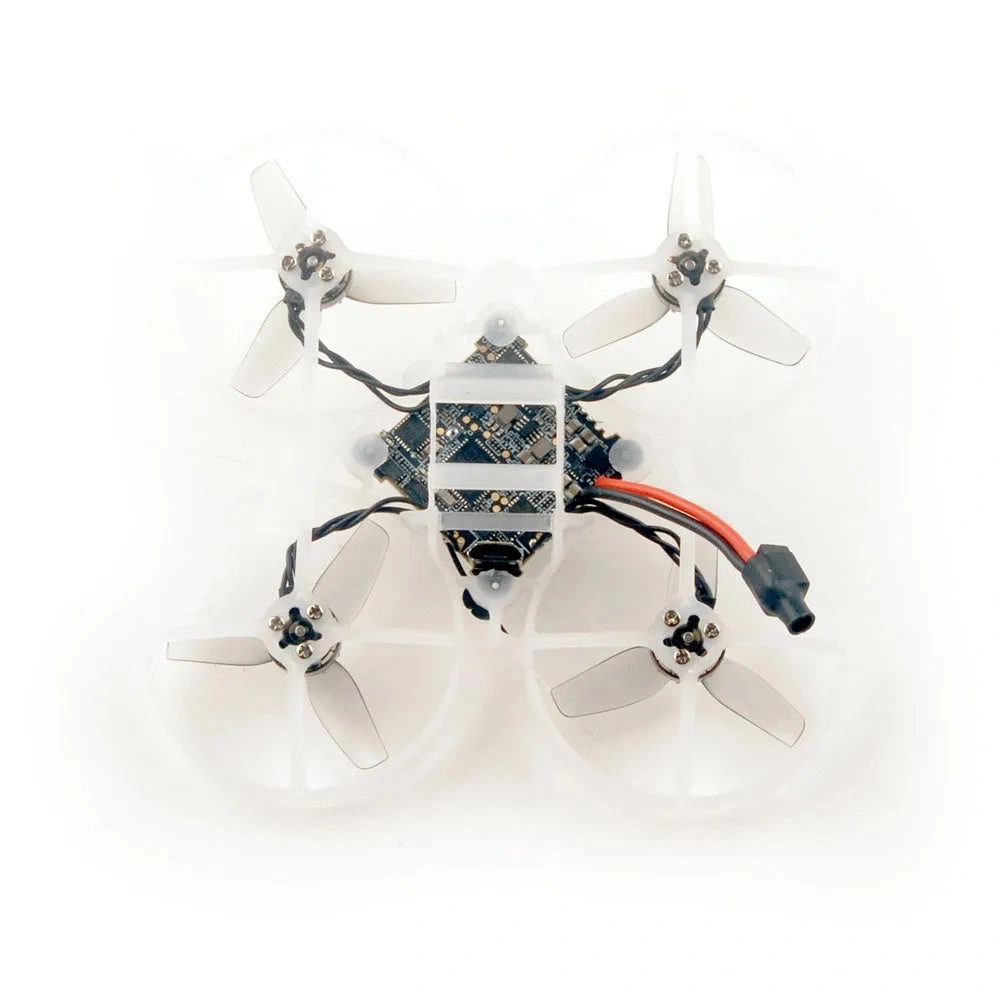

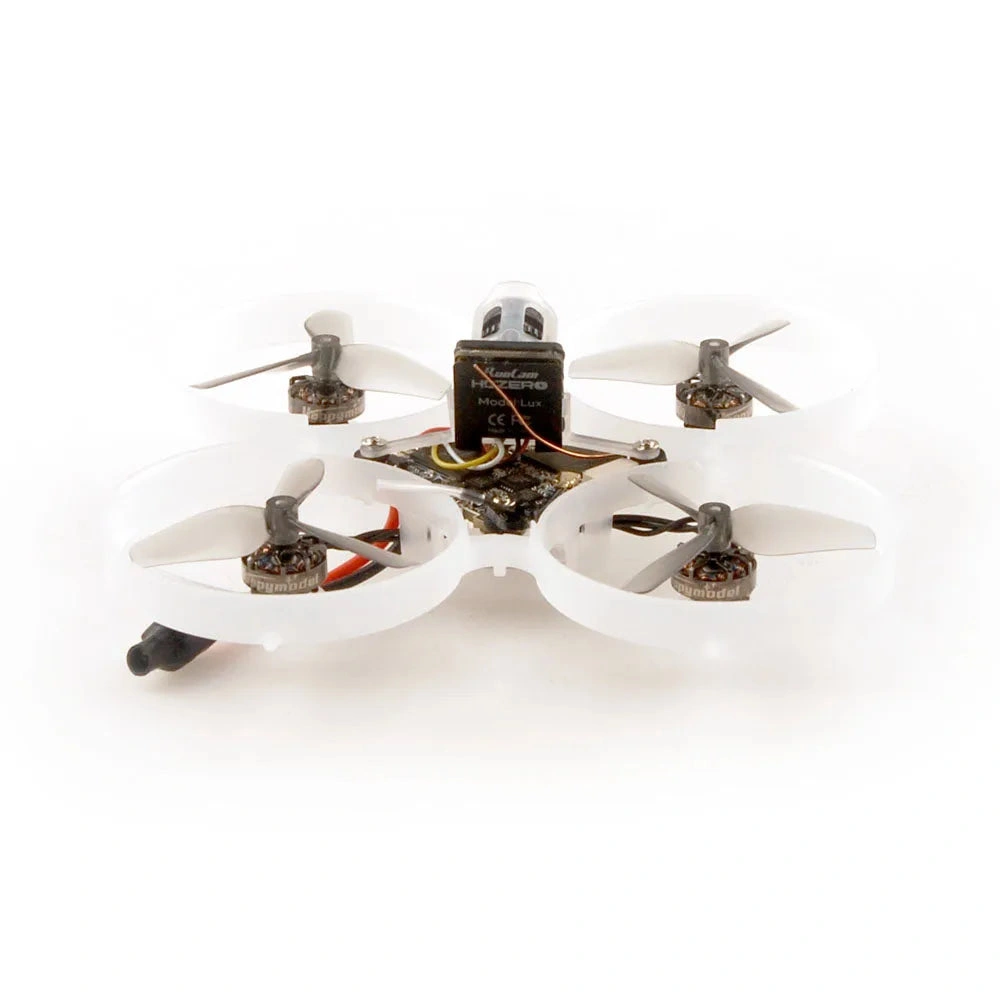

The Happymodel Mobula7 Freestyle BNF is an ultra-light 75mm indoor freestyle drone, designed specifically for HD freestyle flying. Weighing only 24.5 grams, this drone features the new HDZero AIO5 Flight Controller, providing an integrated flying experience. The Mobula7 is equipped with high-efficiency RS0802 KV25000 brushless motors and HQPROP 1.6-inch three-blade ultra-light propellers, delivering a superior freestyle flying experience.
Note: Happymodel Mobula7 Freestyle HD can be pre-ordered now. The pre-sale time is 1 month.
Key Features

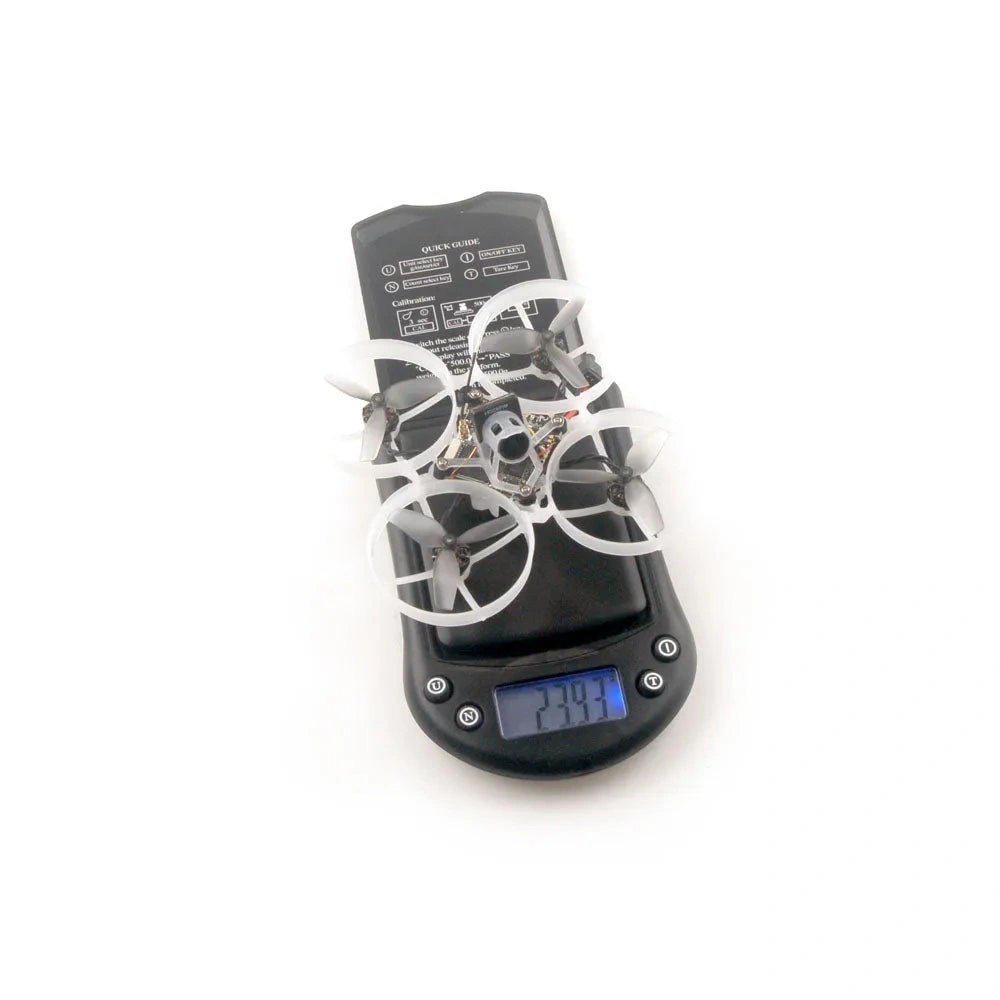

- Weight: Only 24.5g for ultimate lightweight performance.
- Efficient Motor: Powered by RS0802 KV25000 brushless motors (Upgraded from KV20000), designed for high-speed and agile maneuvers.
- Propellers: HQPROP 1.6-inch ultra-light three-blade propellers for enhanced freestyle capabilities.
- Flight Controller: New HDZero AIO5 Flight Controller, integrated with STM32F411 MCU, ICM42688P Gyro, and 5A BLHeli_S 4-in-1 ESC.
- Video Transmission: Built-in 5.8GHz HDZero VTX for high-definition video transmission.
- Receiver: Integrated SPI ExpressLRS 2.4GHz Receiver, compatible with ExpressLRS v3.0 for low-latency control.
- Camera: HDZero Lux Camera with 720p60 resolution, wide field of view (FOV) for superior video quality.
- Battery: Supports 1S 450mAh/550mAh/650mAh A30 or BT2.0 interface for various power options.
- Compatibility: Compatible with Betaflight firmware and pre-installed Bluejay ESC firmware.
- New Release: This is the 2024 December edition with the latest improvements and features.
Product Highlights (Features)
Flight Controller & Electronics
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyroscope: ICM42688P
- Onboard Voltage and Current Meter
- 5A BLHeli_S 4-in-1 ESC
- Pre-installed Bluejay ESC Firmware
- 5V 1A BEC for power regulation
- HDZero 5.8GHz VTX (video transmitter)
- SPI ExpressLRS 2.4GHz Receiver (compatible with ExpressLRS v3.0)
Camera & Video Transmission
- HDZero Lux Camera
- Sensor Size: 1/2 inch
- Resolution: 720p60 (4:3 and 16:9 formats)
- Field of View (FOV):
- 155° diagonal, 126° horizontal, 94° vertical (4:3)
- 145° diagonal, 126° horizontal, 70° vertical (16:9)
- Wide Dynamic Range (WDR)
Motor & Propellers
- Motor: RS0802, KV25000
- Stator Diameter: 8mm
- Stator Length: 2mm
- Shaft Diameter: Φ1.5mm
- Weight: 2.0g
- Propellers: HQPROP 1.6-inch ultra-light three-blade design for freestyle flying.
Battery & Power
- Battery Type: 1S 450mAh/550mAh/650mAh Lipo
- Charging Time: ~50 minutes
- Flight Time: Approx. 25 minutes (FPV version approx. 15 minutes)
Specifications
| Specification | Details |
|---|---|
| Weight | 24.5g |
| Recommended Battery | 1S 450mAh/550mAh/650mAh A30 or BT2.0 |
| Propeller Size | 40mm |
| MCU | STM32F411 (100MHz, 512K Flash) |
| Gyroscope | ICM42688P |
| ESC | 5A BLHeli_S 4-in-1 |
| VTX | 5.8GHz HDZero VTX |
| Receiver | SPI ExpressLRS 2.4GHz |
| Camera | HDZero Lux, 720p60, WDR |
| Motor | RS0802 KV25000, 2.0g |
| Battery | 1S 450mAh/550mAh/650mAh Lipo |
| Charging Time | ~50 minutes |
| Flight Time | 25 minutes (FPV: 15 minutes) |
| Size | 114×49×32mm |
| Net Weight | 98g |

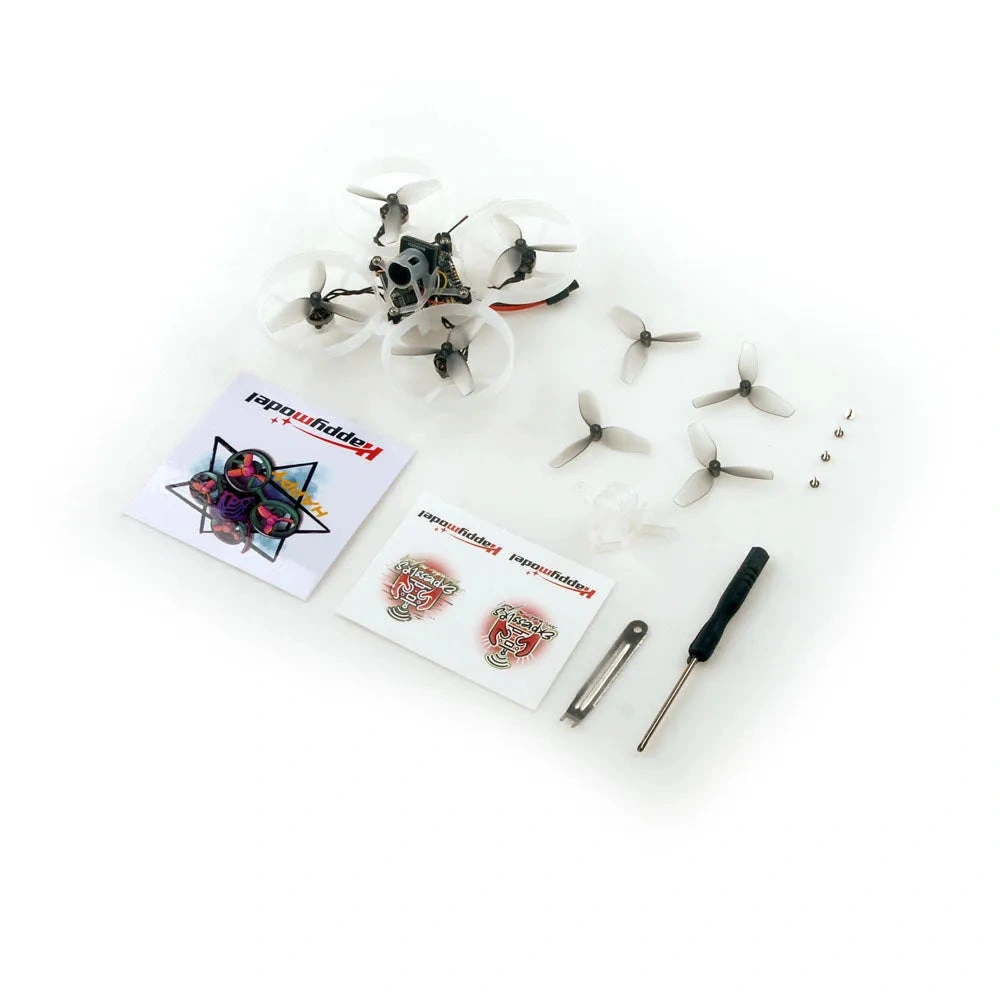

What's Included
- 1x Happymodel Mobula7 Freestyle BNF 1S
- 1x Spare Camera Cover
- 1x Spare Propeller Set
- 1x Screwdriver
- 1x Propeller Removal Tool
